AIC8800D 1T1R
802.11a/b/g/n/ac/ax
BT5.0 USB2.0
13.0 X 12.2mm
Contact us for HDK, SDK and EVB
Availability: | |
---|---|
Wi-Fi 6
BT5.0 and above
AIC
1T1R
Select
USB Interface

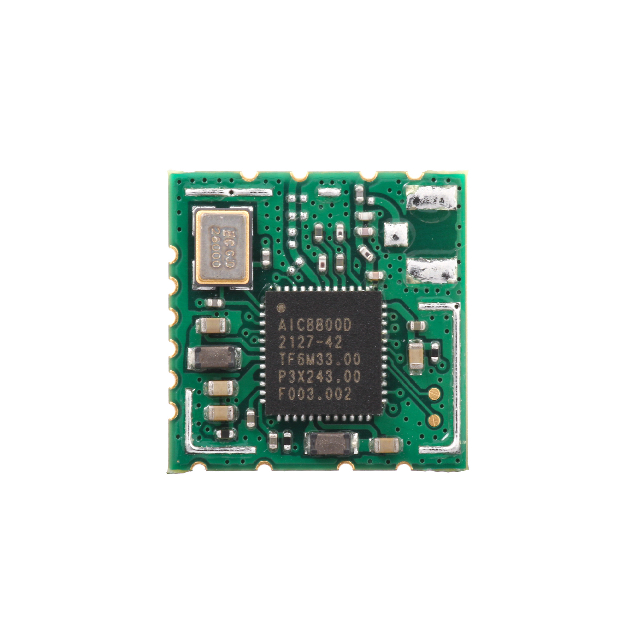

AIC8800D Wi-Fi6 Module N200E-UU
AIC8800D
802.11a/b/g/n/ac/ax
USB2.0
1T1R
BT5.0
13.0 X 12.2mm
N200E-UU is a low-cost and low-power consumption module which has Wi-Fi 6 (2.4G 802.11b/g/n/ac/ax) and Bluetooth 5.0 functionalities. Its WLAN function supports the USB 2.0 interface, and BT function supports the PCM interface. The module provides simple legacy and 20MHz/40MHz co-existence mechanism to ensure backward and network compatibility. The wireless module complies with IEEE 802.11 b/g/n/ac/ax standard and the PHY rate can achieve up to 229Mbps.
Compliant with IEEE 802.11b/g/n/ac/ax.
Up to 229Mbps PHY rate using 40MHz bandwidth.
Wi-Fi Security WEP / WPA / WPA2/WPA3-SAE Personal, MFP.
Support STA, SoftAP, Wi-Fi Direct modes concurrently.
Support STBC, beamforming.
Support Wi-Fi 6 TWT.
Support USB2.0, PCM.
Supports WLAN-Bluetooth coexistence.
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Model No. | N200E-UU | Main Chipset | AIC8800D |
Interface | Wi-Fi: USB2.0 BT: USB2.0 | Wi-Fi Standard | IEEE802.11a/b/g/n/ac/ax+BT5.0 |
Data Rate | TX:286.8Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Linux/Android/Windows |
Operating Frequency | 2.4G:2.400GHz~2.497GHz(2.4G ISM Band) 5.8G:4.900GHz~5.845GHz(5.0G ISM Band) | Operating Voltage | 3.3V |
Dimension | L13 * W12.2 * T1.7 mm | RF Chain | 1T1R |
Operating Temperature | -20°C to 80°C | Storage Temperature | -55°C to 85°C |
Part No. | Description |
FGN200EUUX-00 | N200E-UU 802.11a/b/g/n/ac/ax 1T1R+BT5.0, Single antenna, USB2.0,With PCM Interface |
