Availability: | |
---|---|
2.4G
BT4.2 and below
Realtek
1T1R
Select
USB Interface

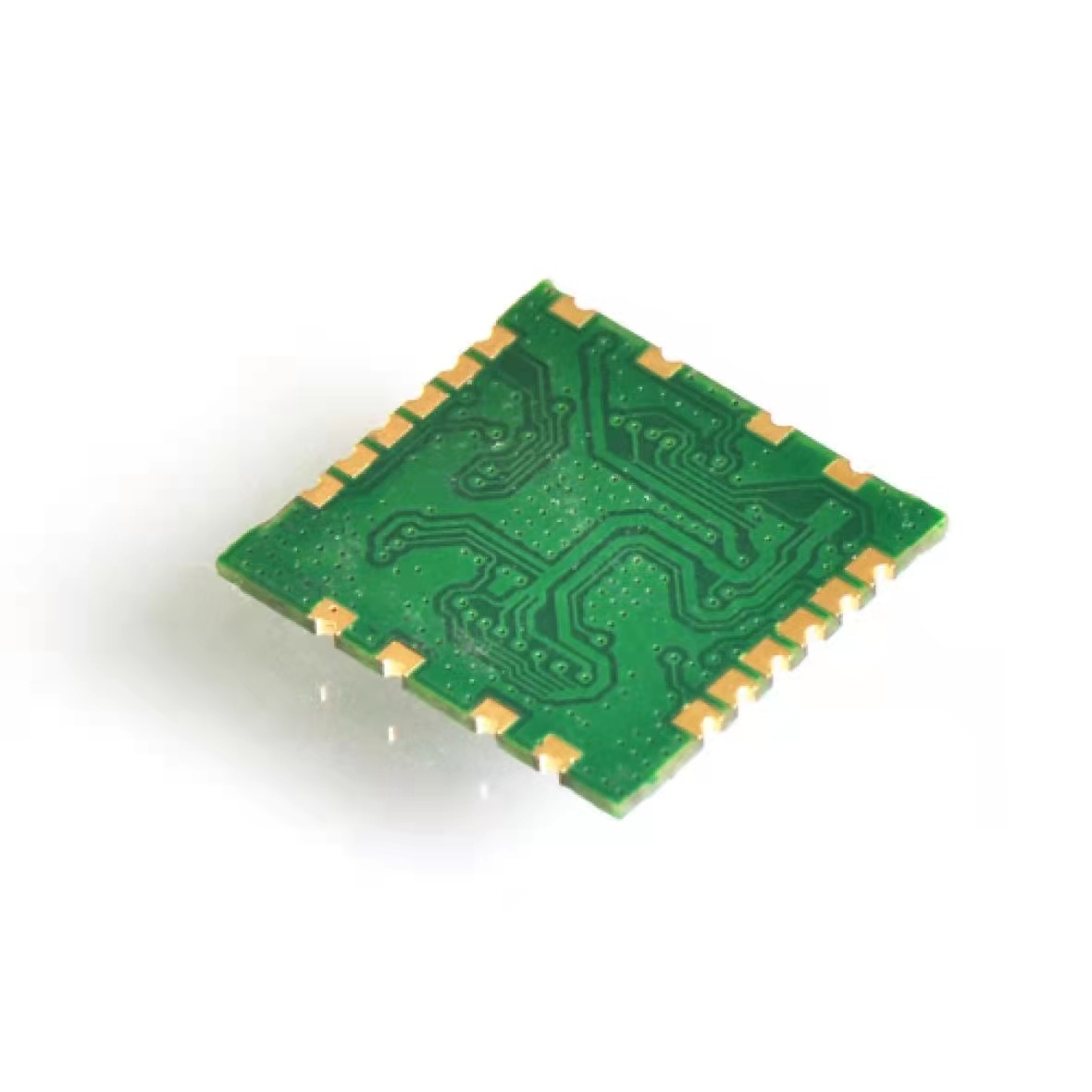

RTL8723DU Wi-Fi Module 6223E-UUD
RTL8723DU
2.4G Wi-Fi
USB2.0 Interface
1T1R
BLE4.2
12.2 X 13.0mm
6223E-UUD is a small size and low profile of Wi-Fi + BT Combo module, board size is 12.2mm*13mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides USB interface for Wi-Fi and Bluetooth. The module provides simple legacy and 20MHz/40MHz co-existence mechanisms to ensure backward and network compatibility and Bluetooth can support BT2.1+EDR/BT3.0 and BT4.2.
6223E-UUD uses highly integrated Wi-Fi/BT single chip based on advanced COMS process.
6223E-UUD integrates whole Wi-Fi/BT function blocks into a chip, such as USB, MAC, BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.
This compact module is a total solution for a combination of Wi-Fi + BT technologies.
The module is specifically developed for Smart phones and Portable devices.
General Features
Operate at ISM frequency bands (2.4GHz).
IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i.
Enterprise level security which can apply WPA/WPA2 certification for Wi-Fi.
Wi-Fi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates.
WLAN Interface
USB for Wi-Fi and Bluetooth.
Bluetooth Features
Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode.
Fully qualified for Bluetooth 3.0.
Fully qualified for Bluetooth 4.2 Dual mode.
Full–speed Bluetooth operation with Piconet and Scatternet support.
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
single Antenna:
Dual Antenna:
Model No. | 6223E-UUD | Main Chipset | RTL8723DU |
Interface | Wi-Fi: USB 2.0 BT: USB 2.0 | Wi-Fi Standard | IEEE 802.11a/b/g/n |
Data Rate | 150Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux/ Win CE /iOS /XP/WIN7/WIN10 |
Operating Frequency | 2.4G:2.400GHz~2.497GHz (2.4G ISM Band) | Operating Voltage | 3.3V |
Dimension | L x W x H: 12.2 x 13 x1.6 (typical) mm | RF Chain | 1T1R |
Operating Temperature | 0°C to 70°C | Storage Temperature | -55°C to 85°C |
Part No. | Description |
FG6223EUUD-W1 | RTL8723DU, b/g/n, Wi-Fi+BLE4.2, 1T1R, 12.2X13mm, USB+PCM Single antenna, PCB version V1.0 |
FG6223EUUD-W2 | RTL8723DU, b/g/n, Wi-Fi+BLE4.2, 1T1R, 12.2X13mm, USB+PCM, Dual Antenna, PCB version V1.0 |
FG6223EUUD-W3 | RTL8723DU,b/g/n,Wi-Fi+BLE4.2,1T1R,12.2X13mm,USB+PC M Single antenna, PCB version V1.0 (with shield cover) |
FG6223EUUD-W4 | RTL8723DU, b/g/n, Wi-Fi+BLE4.2, 1T1R, 12.2X13mm, USB Single antenna, PCB version V3.0 |
FG6223EUUD-W5 | RTL8723DU, b/g/n, Wi-Fi+BLE4.2, 1T1R, 12.2X13mm, USB, Dual antenna, PCB version V3.0 |
FG6223EUUD-L4 | RTL8723DU b/g/n,Wi-Fi+BLE4.2,1T1R,12.2X13mm, USB+PCM,(No USB drop capacitors),Single antenna |
