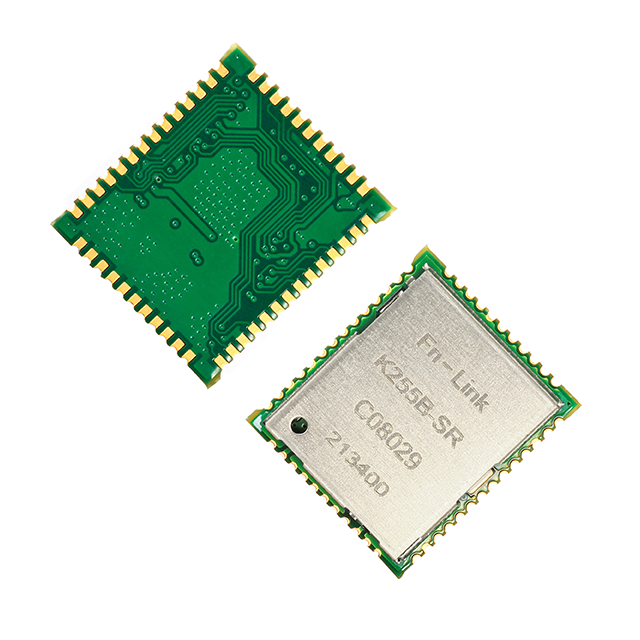

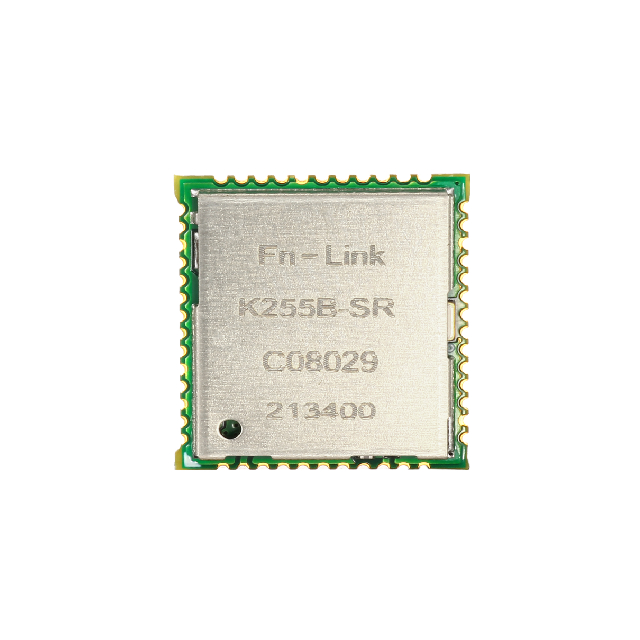

K255B-SR Wi-Fi Module

W155S1 1T1R
SDIO3.0/Uart 5G Wi-Fi
BT5.0 / BLE5.0
13.0 X 15.0mm
Availability:
  • 2.4G+5G
  • BT5.0 and above
  • Amlogic
  • 1T1R
  • Select
  • Wi-Fi&BT Interface

Product Name

W155S1 Wi-Fi Module K255B-SR

W155S1

5G Wi-Fi

SDIO3.0/Uart

1T1R

BT5.0 / BLE5.0

13.0 X 15.0mm




Details information


 Features

CMOS MAC, Baseband PHY and RF in a single chip for IEEE 802.11 a/b/g/n/ac.

Support 802.11ac 1x1, compliant with MU-MIMO STA mode.

SDIO 3.0 interface for WLAN, with rate up to 208MHz.

802.11ac support maximum rate up to 433Mbps in 80MHz bandwidth.

Support HS-UART and PCM host interface for BT.

Supports Bluetooth V5.0 features.

Dual mode BT 5.0 supporting BDR, EDR, LE1M, LE2M and LE8S rates.


 Applications

OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products


 Block Diagram


 Parameters

Model No

K255B-SR

Main Chipset

W155S1

Interface

SDIO3.0

WiFi Standard

IEEE 802.11a/b/g/n/ac+BLE5.0

Data Rate

433Mbps

Certification

RoHS,REACH

RF Antenna

External Antenna

OS Supported

Linux/Android/Windows

Operating Frequency

2.4G:2.400GHz~2.497GHz(2.4G ISM Band)

5.8G:4.900GHz~5.845GHz(5.0G ISM Band)

Operating Voltage

3.3V

Dimension

L15.0 * W13.0 * T2.15 mm

RF Chain

1T1R

Operating Temperature

0°C to 70°C

Storage Temperature

-40°C to 85°C


 Ordering Information

Part No.

Description

FGK255BSRX-00

W155S1, a/b/g/n/ac, Wi-Fi, BT5.0, 1T1R, SDIO+UART, 2 Antenna version, 13x15mm(GENERAL VERSION)
