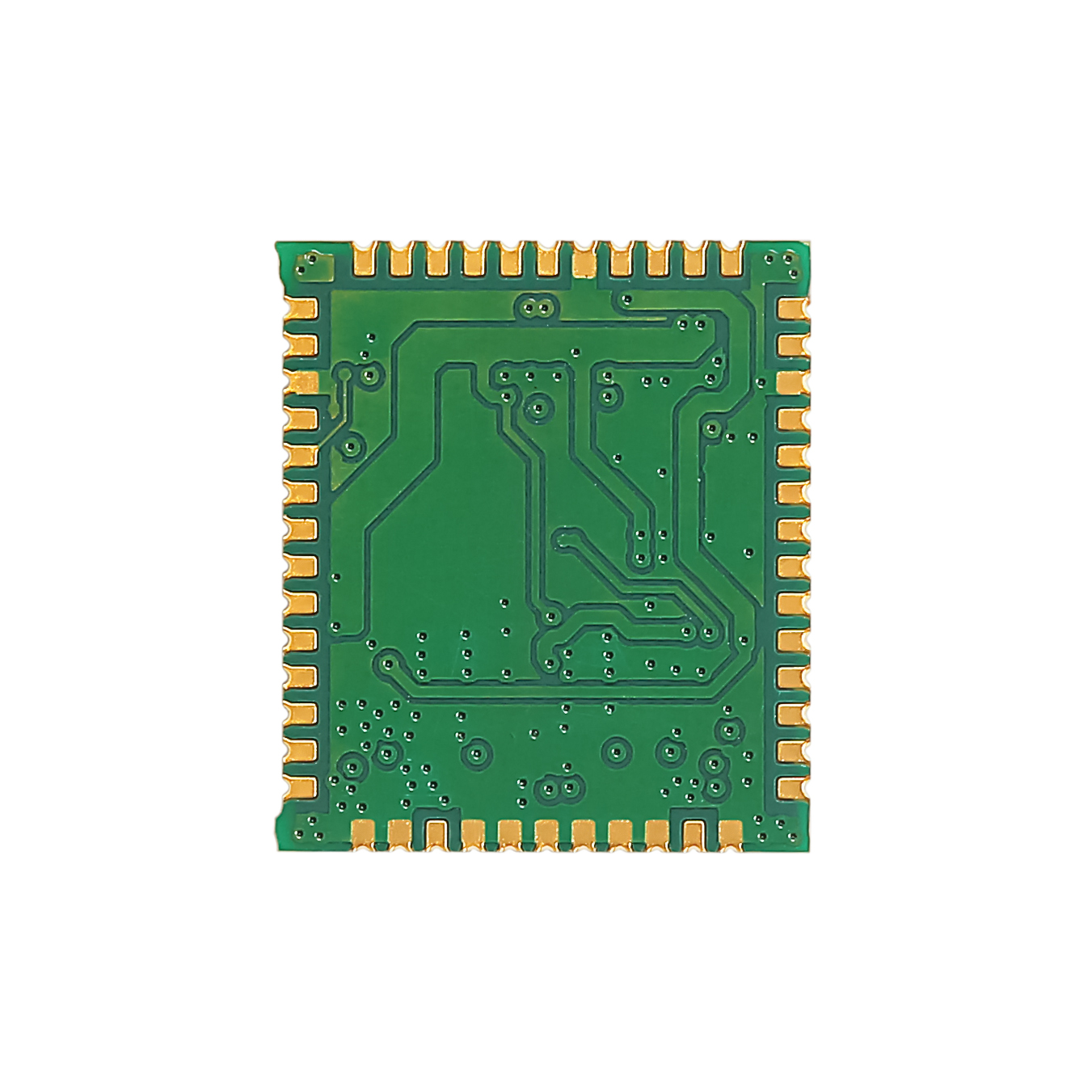

L297B-SR Wi-Fi Module

NXP88W8997 2T2R
L297B-SR 5G WiFi BT5.0
SDIO2.0/3.0 Interface
13.0 X 15.0mm
Availability:
  • 2.4G+5G
  • BT5.0 and above
  • NXP
  • 2T2R
  • Select
  • Wi-Fi&BT Interface

Product Name

NXP88W8997  Wi-Fi Module   L297B-SR

NXP88W8997

5G Wi-Fi

SDIO2.0/3.0 Interface

BT5.0

2T2R

13.0 X 15.0mm


Details Information

Introduction

This document is to specify the product requirements for 802.11a/b/g/n/ac and Bluetooth 5.0 SDIO&UART module. This module based on NXP(MARVELL) 88W8997 chipset that complied with IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac standard from 2.4~2.5GHz and 5.15GHz ~ 5.85GHz, and it also can be used to provide up to 11Mbps for IEEE 802.11b, 54Mbps for IEEE 802.11a and IEEE 802.11g, 150Mbps for 802.11n and 866.7Mbps for IEEE 802.11ac to connect your wireless LAN.


Features

General

Compatible with IEEE 802.11a standard to provide wireless 54Mbps data rate.

Compatible with IEEE 802.11b standard to provide wireless 11Mbps data rate.

Compatible with IEEE 802.11g standard to provide wireless 54Mbps data rate.

Compatible with IEEE 802.11n standard to provide wireless 150Mbps data rate.

Compatible with IEEE 802.11ac standard to provide wireless 866.7Mbps data rate

Supports TKIP/WEP, AES/CCMP, AES/CMAC, AES/GCMP and WAPI enhanced security

Host Interface

SDIO 2.0/3.0 Interface for WLAN.

SDIO Interface or High-Speed UART Interface for Bluetooth.

HSF compliant.

Bluetooth Features

Bluetooth 5.0 compliant.

Supports Bluetooth classic (BDR/EDR).

Supports Bluetooth Low Energy (BLE).


 Applications

OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.


 Block Diagram

L297B-SR module


 Parameters

Model No.

L297B-SR

Main Chipset

NXP88W8997

Interface

Wi-Fi: SDIO V2.0/3.0

BT: UART/SDIO

Wi-Fi Standard

IEEE802.11a/b/g/n/ac+BT5.0

Data Rate

866.7Mbps

Certification

RoHS,REACH

RF Antenna

External Antenna

OS Supported

Android/Linux/Windows

Operating Frequency

2.4G:2.4000GHz-2.4835GHz

5.8G: 5.150GHz-5.825GHz

Operating Voltage

3.3V

Dimension

L13.0 * W15.0 * T2.3mm

RF Chain

2T2R

Operating Temperature

-30°C to 85°C

Storage Temperature

-55°C to 125°C


 Ordering Information

Part No.

Description

FGL297BSRX-00

NXP88W8997, b/g/n/ac, Wi-Fi+BLE5.0, 2T2R, 13X15mm, SDIO/ UART, PCB version V1.0
