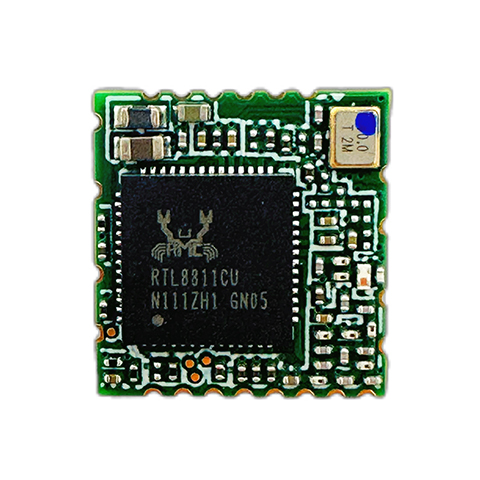

6111E-UC Wi-Fi Module

RTL8811CU
5G Wi-Fi 1T1R
USB2.0 Interface
12.0 X 13.0mm
Contact us for HDK, SDK and EVB

Availability:
  • 2.4G+5G

  • Without BT

  • Realtek

  • 1T1R

  • Select

  • USB Interface

Product Name

RTL8811CU Wi-Fi Module 6111E-UC

RTL8811CU

5G Wi-Fi

USB2.0 Interface

1T1R

12.0 X 13.0mm



Details Information

Introduction

Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. It is a highly-integrated IEEE 802.11 a/b/g/n/ac MAC/Baseband/RF WLAN single chip. For Wireless LAN(WLAN)operation. The integrated module provides USB interface for Wi-Fi . The module provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanism to ensure backward and network compatibility.

The wireless module complies with IEEE 802.11 a/b/g/n/ac standard and it can achieve up to a speed of 433.3Mbps with single stream in 802.11ac draft to connect to the wireless LAN. The integrated module provides USB interface for Wi-Fi .

This compact module is a total solution for a combination of Wi-Fi technologies.

The module is specifically developed for Smart phones and Portable devices.

 Features

General Features

Support 802.11ac 1x1, Wave-2 compliant with MU-MIMO STA mode.

Complete 802.11n MIMO solution for 2.4GHz and 5GHz band.

USB LPM/Selective Suspend supported.

WLAN Interface

Complies with USB2.0 for WLAN controller.

 Applications

OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.

 Block Diagram

6111E-UC module

 Parameters

Model No.

6111E-UC

Main Chipset

RTL8811CU

Interface

USB

Wi-Fi Standard

IEEE 802.11a/b/g/n/ac

Data Rate

433Mbps

Certification

RoHS,REACH

RF Antenna

External Antenna

OS Supported

Android/Linux/Windows

Operating Frequency

2.4G: 2.4000GHz~2.4835GHz

5.8G: 5.150GHz~5.825GHz

Operating Voltage

3.3V

Dimension

L12.2 * W12.9 * T1.7mm

RF Chain

1T1R

Operating Temperature

0°C to 70°C

Storage Temperature

-55°C to 85°C


 Ordering Information

Part No.

Description

FG6111EUCX-01

RTL8811CU-CG,802.11a/b/g/n/ac ,1T1R,12.2*12.9 ,USB2.0, Single Antenna, PCB V5.0
