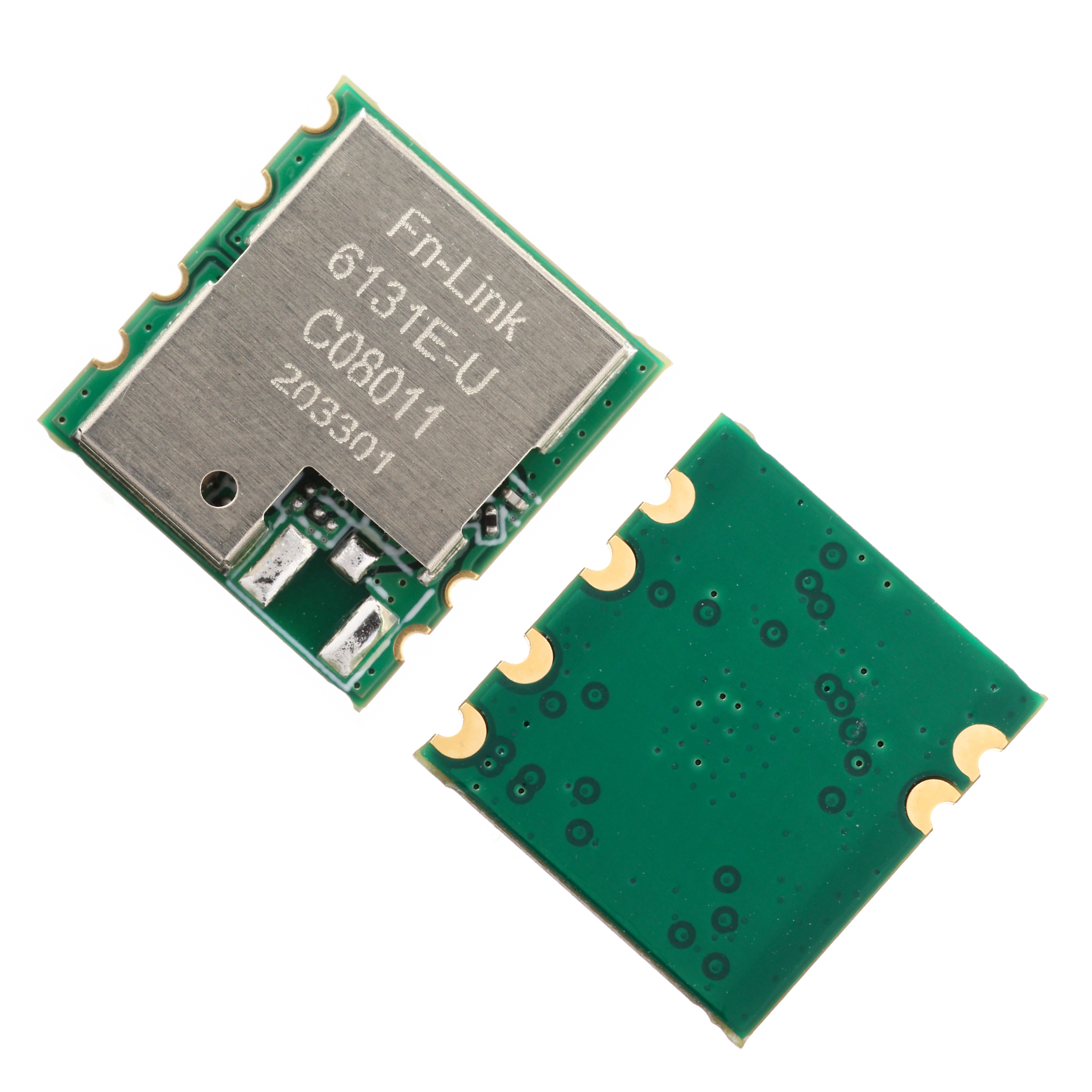

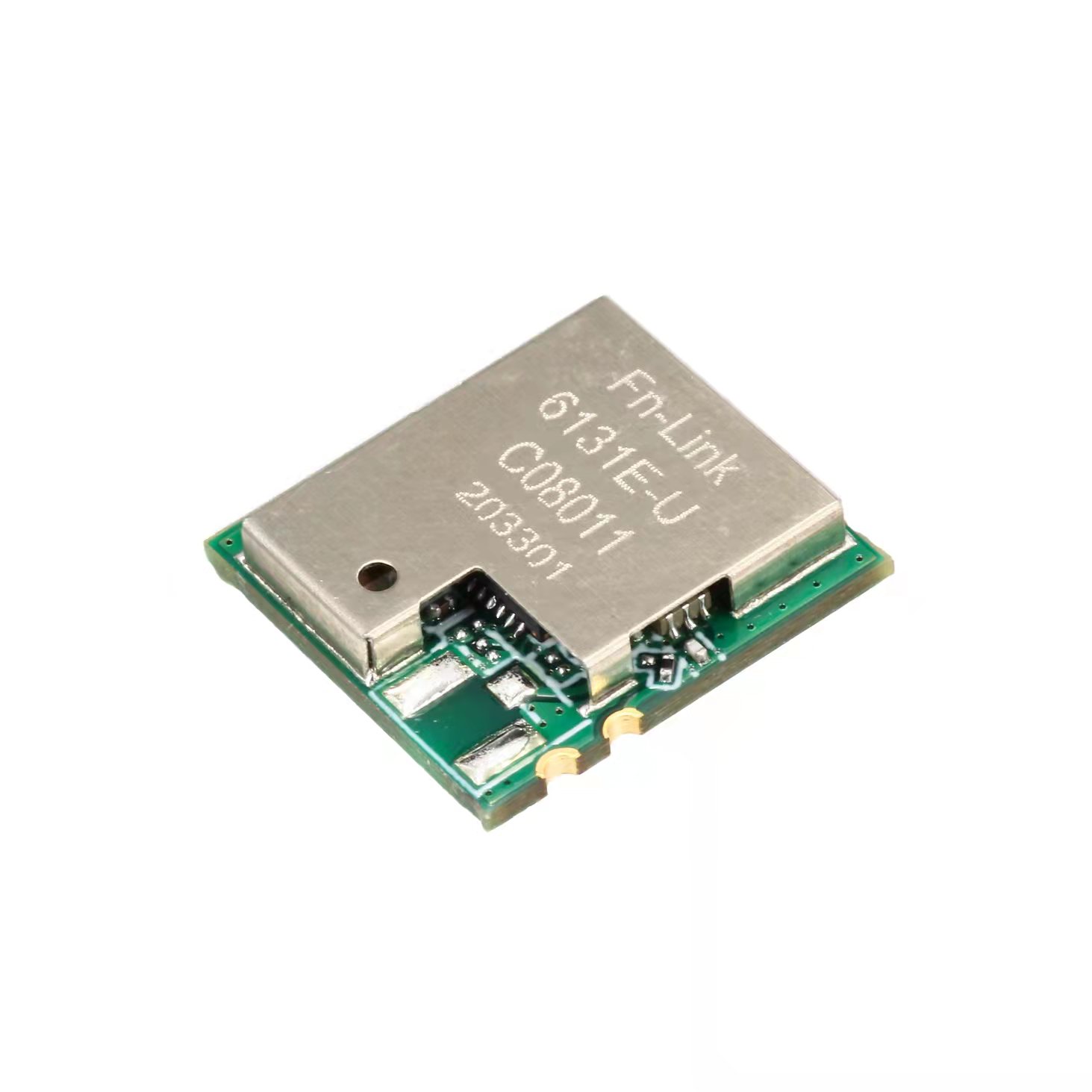

6131E-U Wi-Fi Module

RTL8731BU 1T1R
2.4G Wi-Fi
USB Interface
12.2x13.0mm
Availability:
  • 6131E-U
  • Fn-Link
  • 2.4G
  • Without BT
  • Realtek
  • 1T1R
  • Select
  • Wi-Fi Interface

Product Name

RTL8731BU Wi-Fi Module 6131E-U

RTL8731BU

2.4G Wi-Fi

USB Interface

1T1R

12.2x13.0mm




Details information


 Introduction

Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, video stream applications.

With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11a/b/g/n 1x1 Access Points in the wireless LAN.

The wireless module complies with IEEE 802.11 a/b/g/n standard and it can achieve up to a speed of 150Mbps when using 40MHz bandwidth. The integrated module provides USB2.0 interface for Wi-Fi.


 Features

General

Highly integrated wireless local area network (WLAN) system-on-chip (SOC) for 2.4G(802.11b/g/n)/5G (802.11a/n) WLAN application.

Supports 20/40MHz at 2.4GHz and 5GHz.

OFDM with BPSK, QPSK, 16QAM, 64QAM modulation, Coding Rate: 1/2, 2/3, 3/4, and 5/6.

Maximum data rate 54Mbps in 802.11a and 802.11g, and 150Mbps in 802.11n.

Small SMT package.

802.11i (WPA, WPA2,WPA3). Open, shared key, and pair-wise key authentication services.

PHY Features

Max 72.2Mbps receive PHY rate and 72.2Mbps transmit PHY rate using 20MHz bandwidth.

Max 150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth.

Host Interface

Supports USB interface for WLAN.


 Applications

OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.


 Block Diagram

1



 Parameters


Model No.

6131E-U

Main Chipset

RTL8731BU

Interface

Wi-Fi: USB 2.0

WiFi Standard

IEEE802.11b/g/n

Data Rate

150Mbps

Certification

RoHS,REACH

RF Antenna

On-board Antenna

OS Supported

Android /Linux/ Win CE /iOS /XP/WIN7/WIN10

Operating Frequency

2.4G:2.400~2.4835GHz

Operating Voltage

3.3V

Dimension

L12.2 *W13.0*T2.35mm

RF Chain

1T1R

Operating Temperature

-20°C to 70°C

Storage Temperature

-40°C to 85°C


 Ordering Information

Part No.

Description

FG6131EUXX-00

RTL8731BU/802.11a/b/g/n/1T1R, 12mm*13mm/USB (Rf is IPEX)
FG6131EUXX-01 RTL8731BU/802.11a/b/g/n/1T1R, 12mm*13mm/USB (RF is stamp hole)
