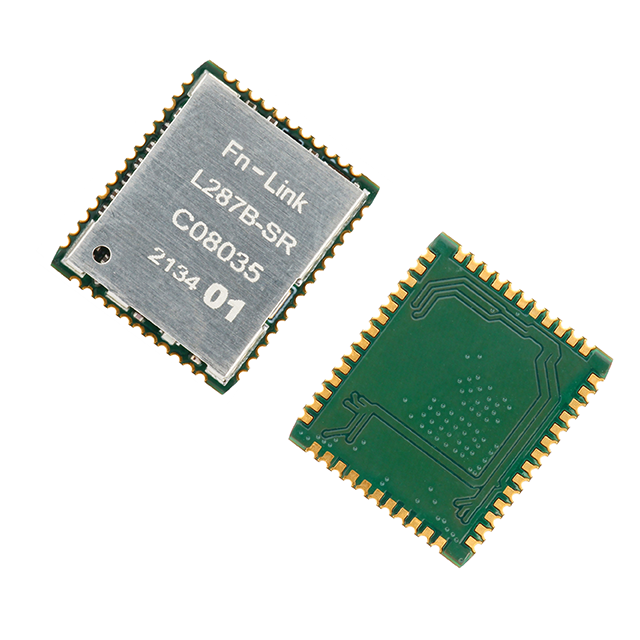

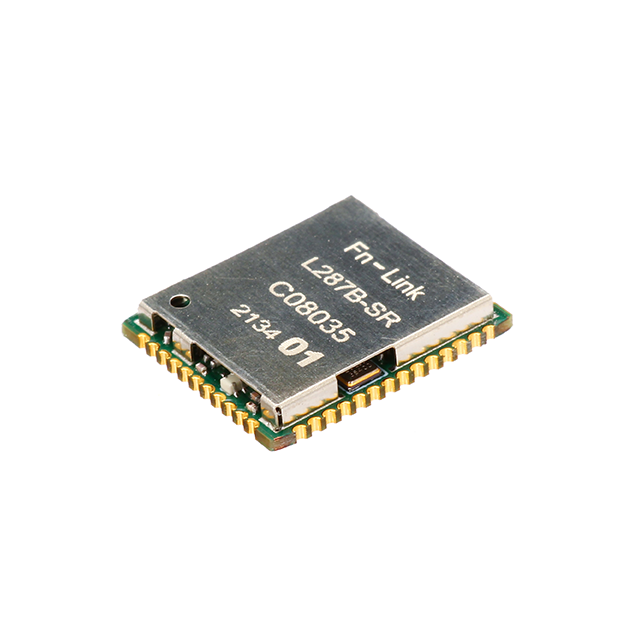

L287B-SR Wi-Fi Module

NXP88W8987 5G Wi-Fi
SDIO3.0/Uart 1T1R
BT5.2/ BLE5.2
13.0 X 15.0mm
Availability:
  • 2.4G+5G
  • BT5.0 and above
  • NXP
  • 1T1R
  • Select
  • Wi-Fi&BT Interface

Product Name

NXP88W8987 Wi-Fi Module L287B-SR

NXP88W8987

5G Wi-Fi

SDIO3.0/Uart

1T1R

BT5.2/ BLE5.2

13.0 X 15.0mm




Details Information


Introduction

L287B-SR has dual-band Wi-Fi and Bluetooth functionalities. It is based on NXP 88W8987 chipset, a highly-integrated IEEE 802.11a/b/g/n/ac MAC/Baseband/RF WLAN and Bluetooth Baseband/RF single chip. The module provides SDIO3.0 interface for Wi-Fi and HS-UART/PCM for Bluetooth.

L287B-SR can achieve up to a speed of 433.3Mbps with single stream 802.11ac WLAN connection. It is a perfect solution for a combination of Wi-Fi and BT technologies.


 Features

General Features

NXP 88W8987 inside.

Supports link layer topology to be master and slave (connects up to 16 links).

Wi-Fi/Bluetooth coexistence protocol support.

WLAN Features

SDIO3.0 interface for WLAN.

CMOS MAC, Baseband PHY and RF in a single chip for IEEE 802.11 a/b/g/n/ac.

Support 802.11ac, 1x1 with data rates up to MCS9.

Maximum rate 433Mbps in 80MHz bandwidth.

Bluetooth Features

Support Bluetooth V5.2 features.

HS-UART and PCM interface for BT.

Bluetooth LE supports Broadcaster, Observer, Central, and Peripheral roles.


 Applications

OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.


 Block Diagram


11


 Parameters

Model No.

L287B-SR

Main Chipset

NXP88W8987

Interface

SDIO3.0

Wi-Fi Standard

IEEE802.11a/b/g/n/ac+BLE5.2

Data Rate

433Mbps

Certification

RoHS,REACH

RF Antenna

External Antenna

OS Supported

Linux/Android/Windows

Operating Frequency

2.4G:2.400GHz~2.497GHz(2.4G ISM Band)

5.8G:4.900GHz~5.845GHz(5.0G ISM Band)

Operating Voltage

3.3V

Dimension

L15.0 * W13.0 * T2.15 mm

RF Chain

2T2R

Operating Temperature

-30°C to 85°C

Storage Temperature

-40°C to 125°C



 Ordering Information

Part No.

Description

FGL287BSRX-01

88W8987-A2-NYEE, a/b/g/n/ac, Wi-Fi, BT5.2, 1T1R, SDIO+UART, 2 Antenna version, PCB V2.0, 13x15mm
