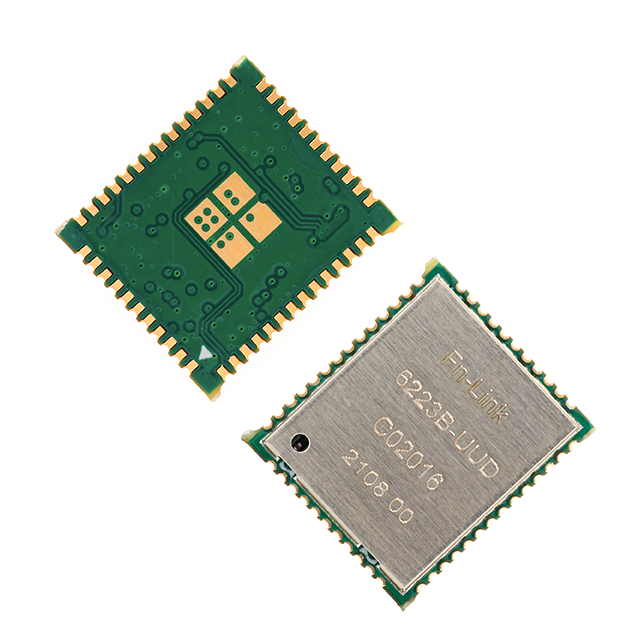

RTL8723DU Wi-Fi Module 6223B-UUD
RTL8723DU
2.4G Wi-Fi
USB2.0 Interface
1T1R
BT4.2/ BLE4.2
13.0 X 15.0mm
The 6223B-UUD is a low-cost and low-power consumption module which has all of the Wi-Fi and Bluetooth functionalities. The module is based on Realtek RTL8723DU chipset that highly integrated single-chip 802.11b/g/n 1T1R WLAN, and an integrated Bluetooth 2.1/4.2 single chip with USB 2.0 multi-function.
The wireless module complies with IEEE 802.11 b/g/n 1x1 standard and it can achieve up to a speed of 150Mbps to connect the wireless LAN. The integrated module provides USB interface for Wi-Fi and Bluetooth.
This compact module is a total solution for a combination of Wi-Fi and Bluetooth V4.2 technologies.
General
Complete 802.11n solution for 2.4GHz band.
20MHz and 40MHz bandwidth transmission.
DSSS with DPSK and DQPSK, CCK modulation with long and short preamble.
Supports multiple Low Energy states.
PHY Features
Compatible with IEEE 802.11b standard to provide wireless 11Mbps data rate.
Compatible with IEEE 802.11g standard to provide wireless 54Mbps data rate.
Compatible with IEEE 802.11n standard to provide wireless 150Mbps data rate.
CMOS MAC, Baseband PHY, and RF in a single chip for IEEE 802.11b/g/n compatible WLAN.
Bluetooth Features
Compatible with Bluetooth v2.1, V4.2 Systems.
Supports Bluetooth 4.0 Low Energy (BLE).
Bluetooth 4.0 Dual Mode support: Simultaneous LE and BR/EDR.
Complies with USB2.0 for WLAN and BT controller.
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Model No. | 6223B-UUD | Main Chipset | RTL8723DU |
Interface | Wi-Fi: USB BT: USB | Wi-Fi Standard | IEEE 802.11a/b/g/n |
Data Rate | 150Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Linux/Android/Windows |
Operating Frequency | 2.4G:2.400GHz~2.497GHz (2.4G ISM Band) | Operating Voltage | 3.3V |
Dimension | L15 * W13 * T2.3 mm | RF Chain | 1T1R |
Operating Temperature | 0°C to 70°C | Storage Temperature | -55°C to 125°C |
Part No. | Description |
FG6223BUUD-00 | RTL8723DU, 802.11b/g/n Wi-Fi 1T1R, BLE4.2, 15X13mm, USB, Dual ANT |
