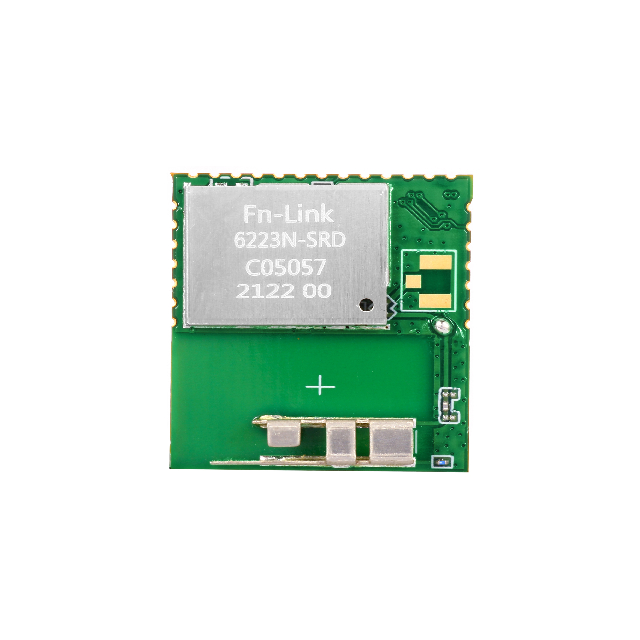

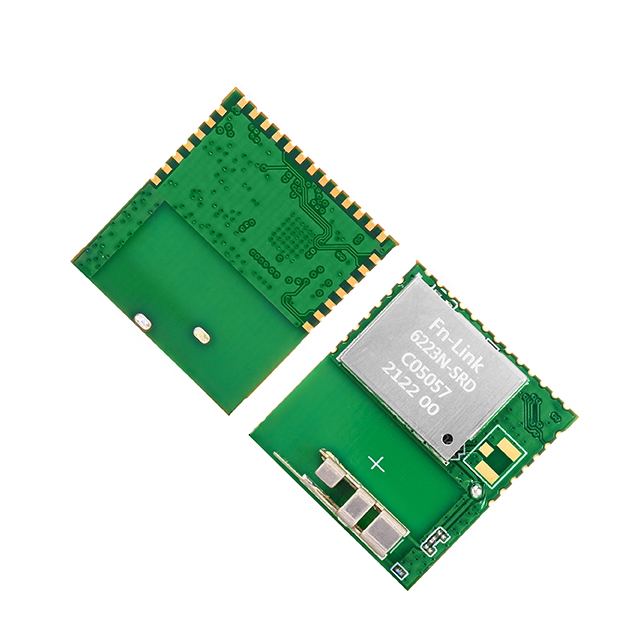

RTL8723DS Wi-Fi Module 6223N-SRD
RTL8723DS
2.4G Wi-Fi
SDIO2.0 / UART
1T1R
BT4.2
21.0x23.0mm
Details Information
6223N-SRD is a highly integrated and excellent performance Wireless LAN (WLAN) and BT. It provides SDIO interface for Wi-Fi to connect with host processor and high speed UART interface for BT. High-speed wireless connection up to 150 Mbps and Bluetooth can support BT2.1+EDR/BT3.0 and BT4.2. It can be easily manufactured on SMT process.
This WLAN Module design is based on Realtek RTL8723DS.It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective.
6223N-SRD integrates whole Wi-Fi/BT function blocks into a chip, such as SDIO/UART, MAC, BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.
This compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for Smart phones and Portable devices.
PHY Features
Operate at ISM frequency bands (2.4GHz).
CMOS MAC, Baseband PHY, and RF in a single chip for 802.11b/g/n compatible WLAN.
Wi-Fi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates.
Host Interface
SDIO for Wi-Fi and UART for Bluetooth.
Bluetooth Features
Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode.
Fully qualified for Bluetooth 3.0.
Fully qualified for Bluetooth 4.2 Dual mode.
Full_speed Bluetooth operation with Piconet and Scatternet support.
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Model No. | 6223N-SRD | Main Chipset | RTL8723DS |
Interface | Wi-Fi: SDIO 2.0 BT: UART | Wi-Fi Standard | IEEE802.11b/g/n |
Data Rate | 150Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux/Windows |
Operating Frequency | 2.4G:2.400～2.4835GHz | Operating Voltage | 3.3V |
Dimension | L23.0 * W21.0 *T4.8mm | RF Chain | 1T1R |
Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 125°C |
Part No. | Description |
FG6223NSRD-00 | RTL8723DS,b/g/n,wifi1T1R+BT4.2,21*23.21mm,SDIO+UAR T,with metal antenna. |
