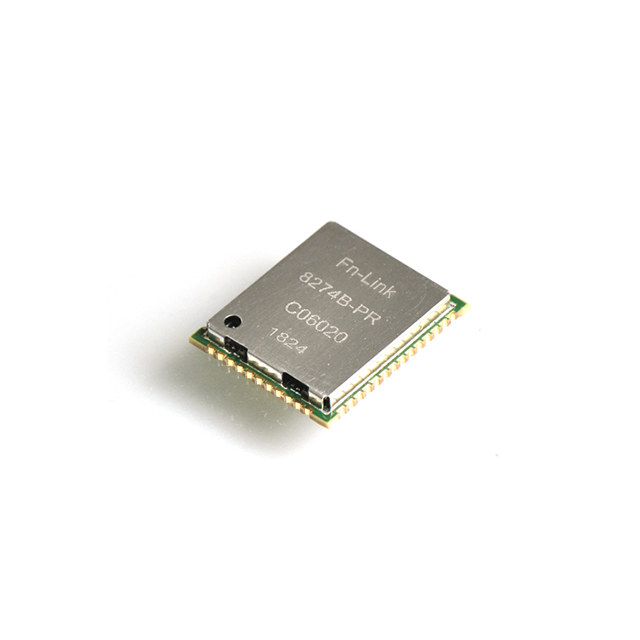

QCA6174A-1 Wi-Fi Module 8274B-PR
QCA6174A-1
5G Wi-Fi
PCIe/Uart
2T2R
BT5.0/ BLE5.0
13.0 X 15.0mm
Details information
Features
Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.Dual-stream spatial multiplexing up to 867 Mbps data rate.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
Supports low power PCI-e interface for WLAN and UART/PCM interface for
Bluetooth.
Supports Bluetooth V5.0, BLE, ANT+ and be backwards compatible with Bluetooth 1.2, 2.X+ enhance data rate.
Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.
Supports Bluetooth for class1 and class2 power level transmissions without
requiring an external PA.
BT host digital interface:
- HCI UART (up to 3.2 Mbps)
- PCM for audio data
Applications
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products
Block Diagram
Parameters
Model No | 8274B-PR | Main Chipset | QCA6174-1 |
Interface | PCI-e | WiFi Standard | IEEE 802.11a/b/g/n/ac+BLE5.0 |
Data Rate | 866Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Linux/Android |
Operating Frequency | 2.4G:2.400GHz～2.497GHz(2.4G ISM Band) 5.8G:4.900GHz～5.845GHz(5.0G ISM Band) | Operating Voltage | 3.3V |
Dimension | L15.0 * W13.0 * T1.9 mm | RF Chain | 2T2R |
Operating Temperature | -30°C to 85°C | Storage Temperature | -40°C to 125°C |
Ordering Information
Part No. | Description |
FG8274BPRX-00 | QCA6174A-1, a/b/g/n/ac Wi-Fi+BLE5.0, 2T2R, 13X15mm, PCIE+ Uart, PCB Version V4.0 |
FG8274BPRX-01 | QCA6174A-1, a/b/g/n/ac Wi-Fi+BLE5.0, 2T2R, 13X15mm,PCIE+ Uart, PCB Version V5.0 |
