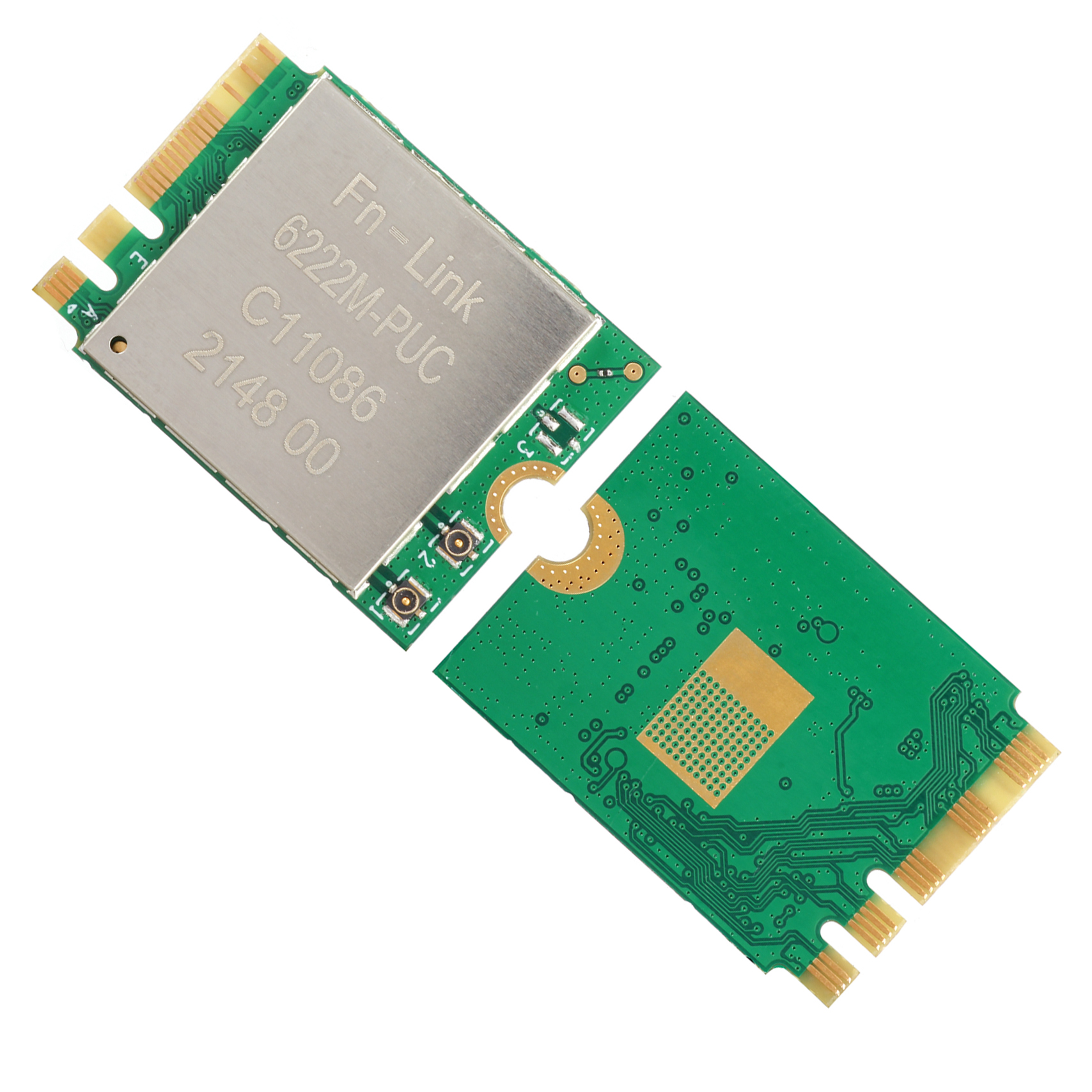

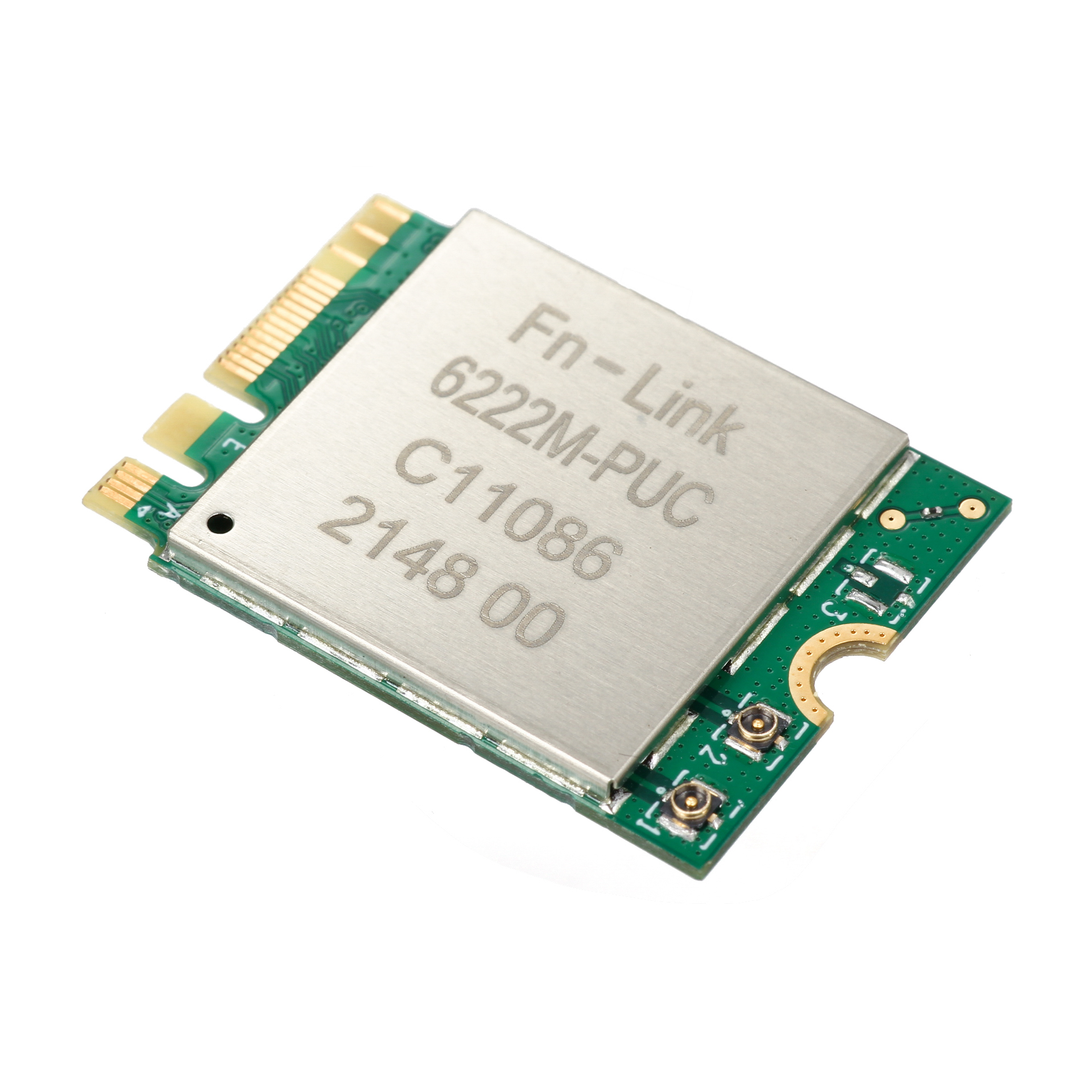

RTL8822CE-CG Wi-Fi Module 6222M-PUC
RTL8822CE-CG
5G Wi-Fi
PCIe/USB
2T2R
BT5.0/ BLE5.0
22.0 X 30.0mm
Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the Wi-Fi functionalities. It is a highly-integrated IEEE 802.11 a/b/g/n/ac MAC/Baseband/RF WLAN single chip. For Wireless LAN(WLAN)operation. The integrated module provides PCIe interface for Wi-Fi .
The module provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility. The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 866.7Mbps to connect the wireless LAN.
The integrated module provides PCIe interface for Wi-Fi, USB interface for Bluetooth.
This compact module is a total solution for a combination of Wi-Fi and Bluetooth v5.0 technologies.
The module is specifically developed for all portable devices.
Features
General
IEEE 802.11a/b/g/n/ac compatible WLAN.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.
Supports 802.11ac 2x2, Wave-2 compliant with MU-MIMO.
Complete 802.11n MIMO solution for 2.4GHz and 5GHz band.
Enhanced BT/Wi-Fi Coexistence Control to improve transmission quality in different profiles.
Integrated 32K oscillator for power management.
Host Interface
Supports low power PCIe(Base Specification Revision 1.1) interface for WLAN and USB(2.0 FS-mode).
Bluetooth Features
Supports Bluetooth 5.0 system.
Compatible with Bluetooth v2.1+EDR.
Dual Mode support: Simultaneous LE and BR/EDR.
Supports Bluetooth for class1, class2 and class3 power level transmissions without requiring an external PA.
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
| Model No. | 6222M-PUC | Main Chipset | RTL8822CE-CG |
| Interface | Wi-Fi: PCIe BT: USB | Wi-Fi Standard | IEEE 802.11a/b/g/n/ac+BLE5.0 |
| Data Rate | 866.7Mbps | Certification | RoHS,REACH |
| RF Antenna | External Antenna | OS Supported | Android /Linux/ Win CE /iOS /XP/WIN7/WIN10 |
Operating Frequency | 2.4G:2.400GHz～2.497GHz(2.4G ISM Band) 5.8G:4.900GHz～5.845GHz(5.0G ISM Band) | Operating Voltage | 3.3V |
| Dimension | L22 * W30 * T2.2 mm | RF Chain | 2T2R |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -55°C to 85°C |
| Part No. | Description |
| FG6222MPUC-00 | RTL8822CE-CG, a/b/g/n/ac, Wi-Fi+BT5.0, 2T2R, 22X30mm, PCIE+USB,M.2 port, PCB Version V1.0 |
| FG6222MPUC-01 | RTL8822CE-CG,2.4G+5G/802.11b/g/n/ac,2T2R+BT5.0,PCIE+ USB,22*30,M.2 port,PCB V2.0 |
