a/b/g/n/ac/ax
Select
SDIO3.0

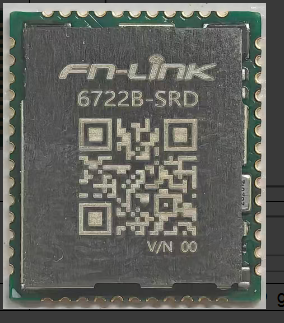

The 6722B-SRD is a highly integrated combo chip that supports 2-stream 802. 11ax solutions withMulti-user MIMO (Multiple-Input, Multiple-Output) with Wireless LAN (WLAN) and Bluetooth 5.4 viaan SDIO interface controller. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF intoa single chip The 6722B-SRD provides a complete solution for a high-performance integrated wireless and Bluetooth device
Model Name | 6722B-SRD |
Product Description | Support Wi-Fi/Bluetooth functionalities |
Dimension | L x W: 13 x 15 mm |
Wi-Fi Interface | SDIO |
BT Interface | SDIO |
OS supported | Android /Linux/iOS /WINDOWS |
Operating temperature | -10°C to 70°C |
Storage temperature | -55°C to 125°C |
General CMOS MAC, Baseband PHY and RF in asingle chip for IEEE 802.11a/b/g/n/ac/axcompatible WLAN Supports 802.11ac 2x2,Wave-2 compatible with MU-MIMO Supports 802.11ax 2x2, with OFDMA and MU-MIMO, by 4 types PPDU format, such as HE SU PPDU, HE ERSU PPDU, HE MU PPDU, and HE TB PPDU Complete 802.11n MIMO solution for 2.4GHz and 5GHz band PHY Features IEEE 802.11a/g/n/ac/ax compatible WLAN IEEE 802.11i (WPA, WPA2, WPA3).Open, shared key, and pair-wise keyauthentication services IEEE 802.11ax MIMO OFDM/OFDMA IEEE 802.11ac MIMO OFDM IEEE 802.11n MIMO OFDM Supports 2.4Ghz and 5G/6G Hz band channels Host Interface n Compatible with SDIO 1.1/2.0/3.0 for WLAN with clock rate up to 208MHz Bluetooth Featuresl Fast AGC control to improve receiving dynamic range Integrated internal Class 1, Class 2, and Class 3 PA Supports Enhanced Power Control Supports LE Power Control Integrated 32K oscillator for power management |
