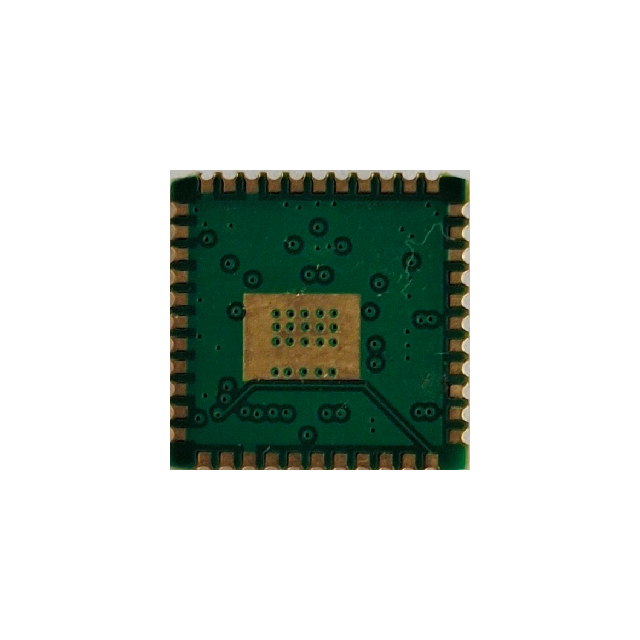

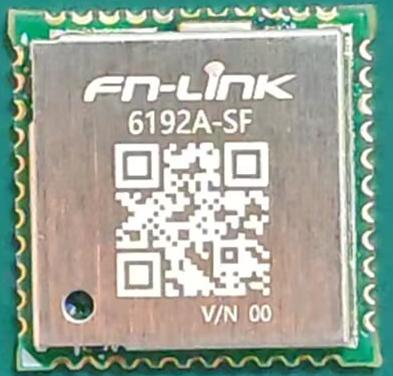

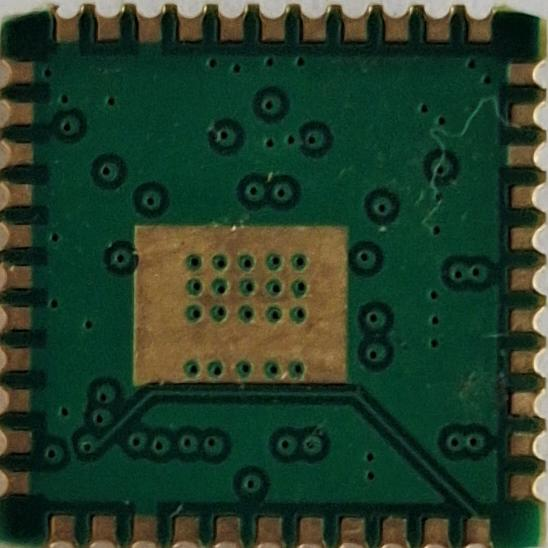

6192A-SF Wi-Fi Module

RTL8192FS 2.4G Wi-Fi
SDIO Interface
2T2R
12.0x12.0mm
Availability:
  • 2.4G
  • Without BT
  • Realtek
  • 2T2R
  • Select
  • Wi-Fi Interface

Product Name

RTL8192FS Wi-Fi Module 6192A-SF

RTL8192FS  2T2R

2.4G Wi-Fi

SDIO Interface

12.0x12.0mm



Details Information

Introduction

6192A-SF base on RTL8192FS complied with IEEE 802.11 b/g/n standard from 2.4G-2.5GHz. Support 300Mbps high speed wireless network connection with SDIO interface (1.1/2.0/3.0 compliant).


 Features

General

12x12mm, 44pin, 3.3V power in.

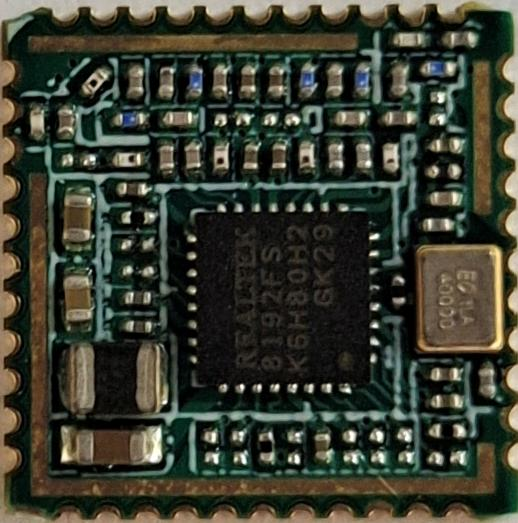

RTL8192FS.

Complete 802.11n 2x2 MIMO solution for 2.4GHz, maximum data rate up to 300Mbps using 40Mhz bandwidth.

Complies with SDIO 1.1/2.0/3.0 for WLAN with clock rate up to 100Mhz.


 Application

OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.


 Block Diagram

6192A-SF block diagram


 Parameters

Model No.

6192A-SF

Main Chipset

RTL8192FS

Interface

Wi-Fi: SDIOV1.1/2.0/3.0

Wi-Fi Standard

IEEE802.11b/g/n

Data Rate

300Mbps

Certification

RoHS,REACH

RF Antenna

External Antenna

OS Supported

Android /Linux/ Win CE /iOS /XP/WIN7/WIN10

Operating Frequency

2.4G:2.400~2.4835GHz

Operating Voltage

3.3V

Dimension

L12.0 * W12.0 *T1.6mm

RF Chain

2T2R

Operating Temperature

0°C to 70°C

Storage Temperature

-40°C to 85°C


 Ordering Information

Part No.

Description

FG6192ASFX-00

RTL8192FS,b/g/n,Wi-Fi,2T2R,12X12mm,SDIO,with shielding, PCB V1.0
FG6192ASFX-01 RTL8192FS,b/g/n,Wi-Fi,2T2R,12X12mm,SDIO,no shielding, PCB V1.0
