FG89FTSM13-W4 is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO network interface device. High-speed wireless connection up to 72.2 Mbps.

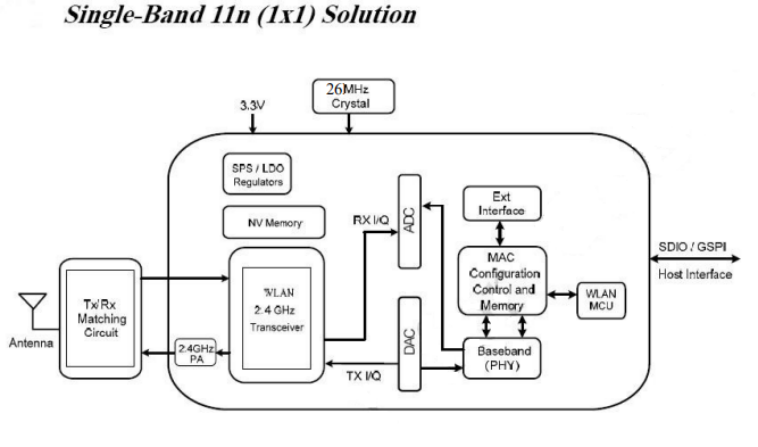

The general hardware for the module is shown in Figure 1. This WLAN Module design is based on Realtek RTL8189FTV. It is a highly integrated single-chip 1*1 SISO WLAN SDIO network interface controller complying with the 802.11n specification. It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective.
Model Name | FG89FTSM13 |
Product Description | Support Wi-Fi functionalities |
Dimension | L x W x H: 12 x 12 x1.6 mm |
Wi-Fi Interface | Support SDIO2.0 / GPIO |
OS supported | Android /Linux |
Operating temperature | -10°C to 70°C |
Storage temperature | -40°C to 80°C |
1.Chipset recommanded low temperature at 0°C,Module actually test passed at -10°
General Enterprise level security which can apply WPA/WPA2 certification for WiFi PHY Features Operate at ISM frequency bands (2.4GHz) IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n WiFi 1 T 1 R allow data rates supporting up to 72.2Mbps PHY rates Host Interface SDIOV1.1/2.0 Interface for WiFi |
