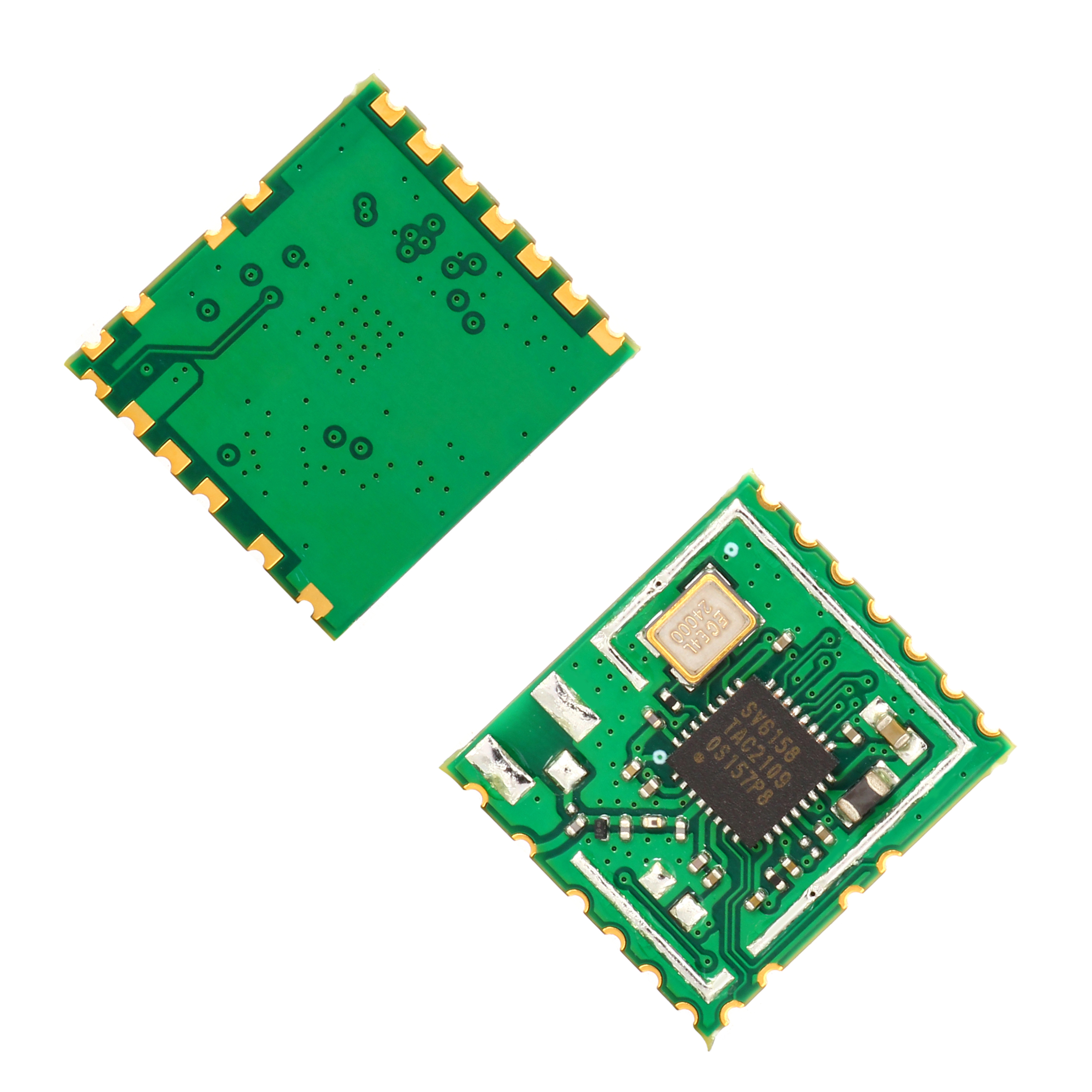

H158M-S Wi-Fi Module

SV6158 1T1R
2.4G Wi-Fi
SDIO Interface
12.5 x 14.0mm
Availability:
  • 2.4G
  • Without BT
  • Icommsemi
  • 1T1R
  • Select
  • Wi-Fi Interface

Product Name

SV6158 Wi-Fi Module H158M-S

SV6158

2.4G Wi-Fi

SDIO Interface

1T1R

12.2 x 14.0mm



Details Information

Introduction

H158M-S is a highly integrated wireless local area network (WLAN) SDIO2.0 network interface device with excellent performance. Based on the iCOMMsemi chipset SV6158, it supports the 802.11b/g/n standard.


 Features

General Features

Works in the ISM 2.4G band.

Wi-Fi 1 T 1 R supports a maximum rate of 150 Mbps.

Size: 12.5x14mm

CMOS MAC, Baseband PHY, and RF in a single chip for 802.11b/g/n compatible WLAN.

Host Interface

SDIO supports 4bits mode, the maximum clock is 50Mhz.

Bluetooth Features

The SV6158M supports BLE Master, Slave,Advertiser, Scanner roles. It supports standard HCI in BLE side.

-B0 model is with BLE5.0 version.


 Applications

OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.


 Block Diagram

H158M-S module


 Parameters

Model No.

H158M-S

Main Chipset

SV6158

Interface

Wi-Fi: SDIO

Wi-Fi Standard

IEEE802.11 b/g/n

Data Rate

150Mbps

Certification

RoHS,REACH

RF Antenna

External  Antenna

OS Supported

Windows/Linux/Android

Operating Frequency

2.4G:2.400~2.4835GHz

Operating Voltage

3.3V

Dimension

L12.5* W14.0 * T1.7mm

RF Chain

1T1R

Operating Temperature

-10°C to 70°C

Storage Temperature

-40°C to 85°C


 Ordering Information

Part No.

Description

FGH158MSXX-00

SV6158,b/g/n,WiFi,1T1R,SDIO,12.5x14mm, with stamp hole

FGH158MSXX-B0

SV6158M,b/g/n,WiFi+BLE5.0,1T1R,SDIO,12.5x14mm, with stamp hole
FGH158MSXX-01 SV6158,b/g/n ,1T1R,12.5*14 ,SDIO2.0, with stamp hole, LDO Version
FGH158MSXX-02 SV6158,b/g/n,WiFi,1T1R,SDIO,12.5x14mm, with IPEX Connector
FGH158MSXX-03 SV6158,b/g/n ,1T1R,12.5*14 ,SDIO2.0, with  IPEX Connector, LDO Version
