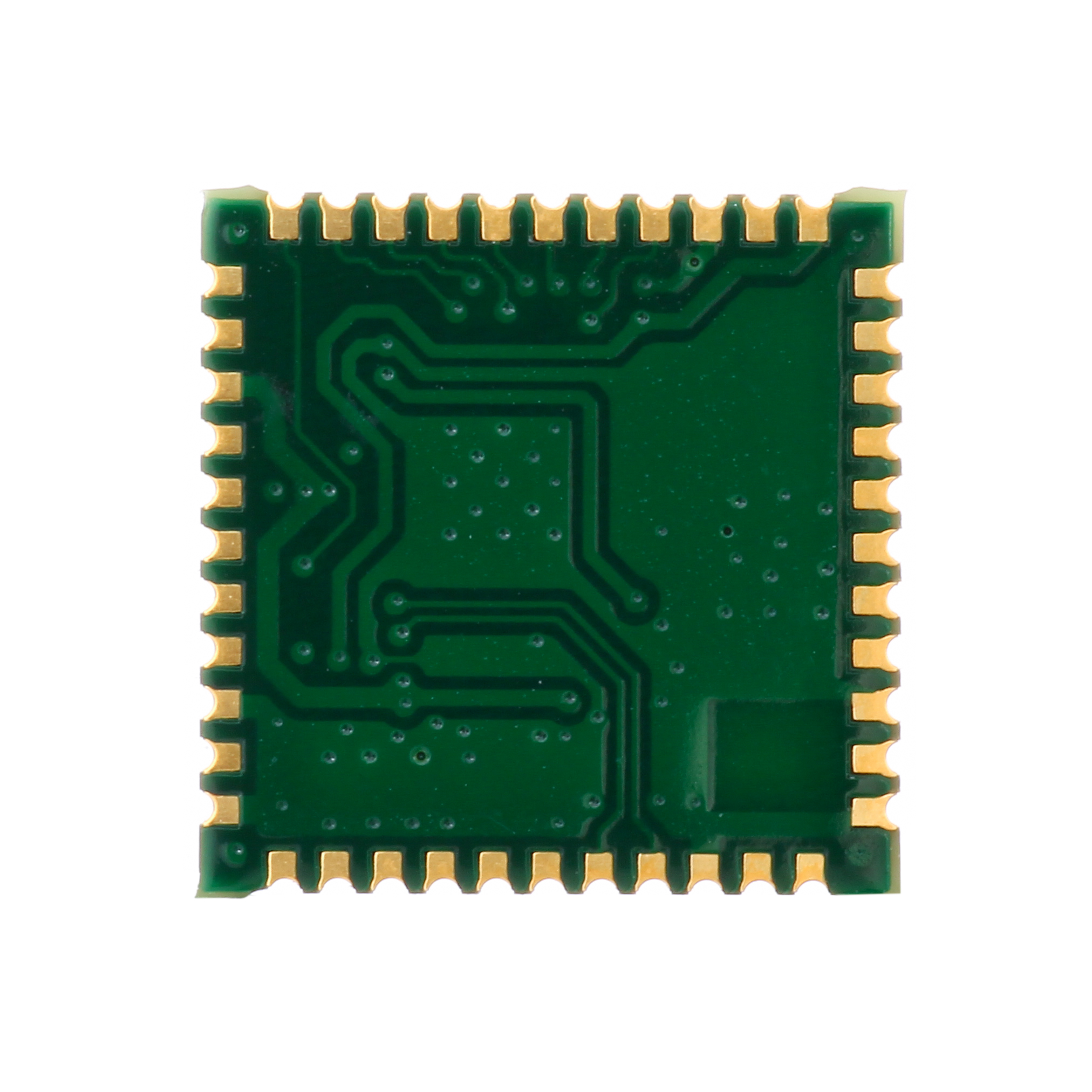

H158A-S Wi-Fi Module

SV6158P 1T1R
2.4G Wi-Fi
SDIO Interface
12.0 x 12.0mm
Contact us for HDK, SDK and EVB
Pre-certification available: CE, FCC, SRRC
Availability:
  • 2.4G

  • BT5.0 and above

  • Icommsemi

  • 1T1R

  • Select

  • SDIO Interface

Product Name

SV6158P Wi-Fi Module H158A-S

SV6158P

2.4G Wi-Fi

SDIO Interface

1T1R

12.0 x 12.0mm



Details Information

Introduction

H158A-S is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO2.0 network interface device. Based on iCOMM chipset SV6158. It supports 802.11b/g/n standard.


 Features

General Features

Operate at ISM frequency bands (2.4GHz).

CMOS MAC, Baseband PHY, and RF in a single chip for 802.11b/g/n compatible WLAN.

Wi-Fi 1 T 1 R allow data rates supporting up to 150 Mbps PHY rates.

1bit/4bits mode supported,clock up to 50Mhz.


 Applications

OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.


 Block Diagram

H158A-S module



 Parameters

Model No.

H158A-S

Main Chipset

SV6158P

Interface

Wi-Fi: SDIO

BT: SDIO

Wi-Fi Standard

IEEE802.11 b/g/n

Data Rate

150Mbps

Certification

RoHS,REACH

RF Antenna

External  Antenna

OS Supported

Android /Linux/ Win CE /iOS /XP/WIN7/WIN10

Operating Frequency

2.4G:2.400~2.4835GHz

Operating Voltage

3.3V

Dimension

L12.0* W12.0 * T1.7mm

RF Chain

1T1R

Operating Temperature

-40°C to 85°C

Storage Temperature

-40°C to 85°C


 Ordering Information

Part No.

Description

FGH158ASXX-00

SV6158P,b/g/n,WiFi 2.4G,1T1R,SDIO, with stamp hole.

FGH158ASXX-01

SV6158P,b/g/n,WiFi 2.4G,1T1R,SDIO, with IPEX Connector.
FGH158ASXX-02 SV6158P,b/g/n,WiFi 2.4G,1T1R,SDIO, with stamp hole, with shielding
FGH158ASXX-03 SV6158,b/g/n ,1T1R,12*12 ,SDIO2.0, LDO Version.
