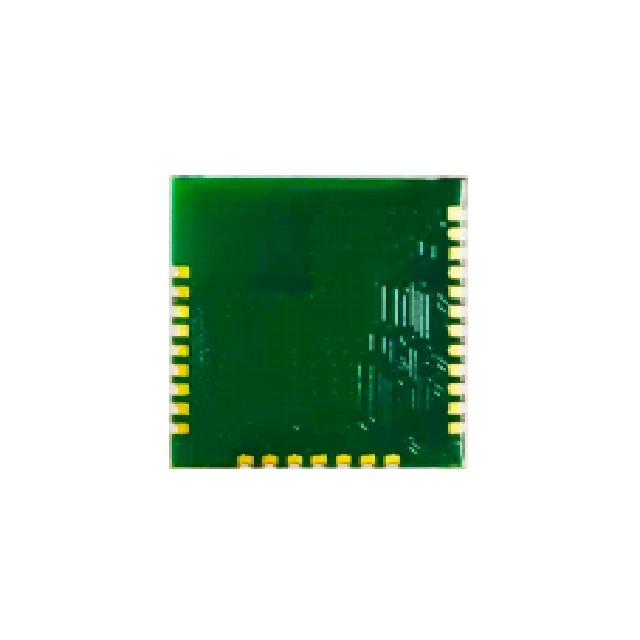

RTL8762CMF Bluetooth Module 6161C-IC
RTL8762CMF
Bluetooth 5.0 Mesh only
UART Interface
16.5X13.3mm
Fn-link has released a low-cost, low-power Bluetooth 5.0 module, Support Mesh function .It is highly integrated internally with an ARM Cortex-M4F 32-bit MCU with 160kByte RAM and 512kByte Flash, as well as a Bluetooth 5.0 LE transceiver.
The Bluetooth wireless module conforms to bluetooth 5.0 LE standard and provides UART, SPI, I2C, ADC and other interfaces for Bluetooth. Module size is moderate, suitable for intelligent LED applications, can effectively solve the emergency communication problems in high-rise, underground, tunnel, large complex and other complex environment.
General
Supports 2Mbps LE.
Support OTA control upgrade.
Supports four-wire SPI.
Supports one I2C.
multiple configurable GPIO.
It supports master-slave integration,both host roles and slave roles, and supports the establishment of 9 links, one host link and eight slave links at the same time.
Package size:16.5X13.3X2.3 mm.
Bluetooth Features
Support Bluetooth 5.0 LE standard.
Supports UART communication.
Laptop,Advertising Machine, Smart TV, IPC/NVR ,Industrial Control Equipment, Car Recorder, Smart Doorbell, Smart TV,Smart Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Car Front/Back End, UAV, Robot, Intelligent Gateway, Children's Education Toy, Lighting Fixture,Intelligent Street Lamp,Smart Home Appliances/ Home Appliance, Instrumentation (Water, Electricity, Gas) Smart City and other Consumer Electronic Products.
| Model No. | 6161C-IC | Main Chipset | RTL8762CMF |
| Interface | BT: UART | Bluetooth Standard | BT5.0/ BLE5.0 |
| RF Antenna | On-board antenna | Certification | RoHS,REACH |
| MPQ | 1000pcs/reel | Firmware Version | OZT_DO_201215_r1530，922BC1E2 |
| Dimension | L16.5 * W13.3 *T2.3mm | Operating Voltage | 3.3V |
| Operating Temperature | -20°C to 85°C | Storage Temperature | -40°C to 125°C |
| Part No. | Description |
| FG6161CICX-00 | RTL8762CMF QFN40_5x5 BT5.0+UART PCB V1.0 |
