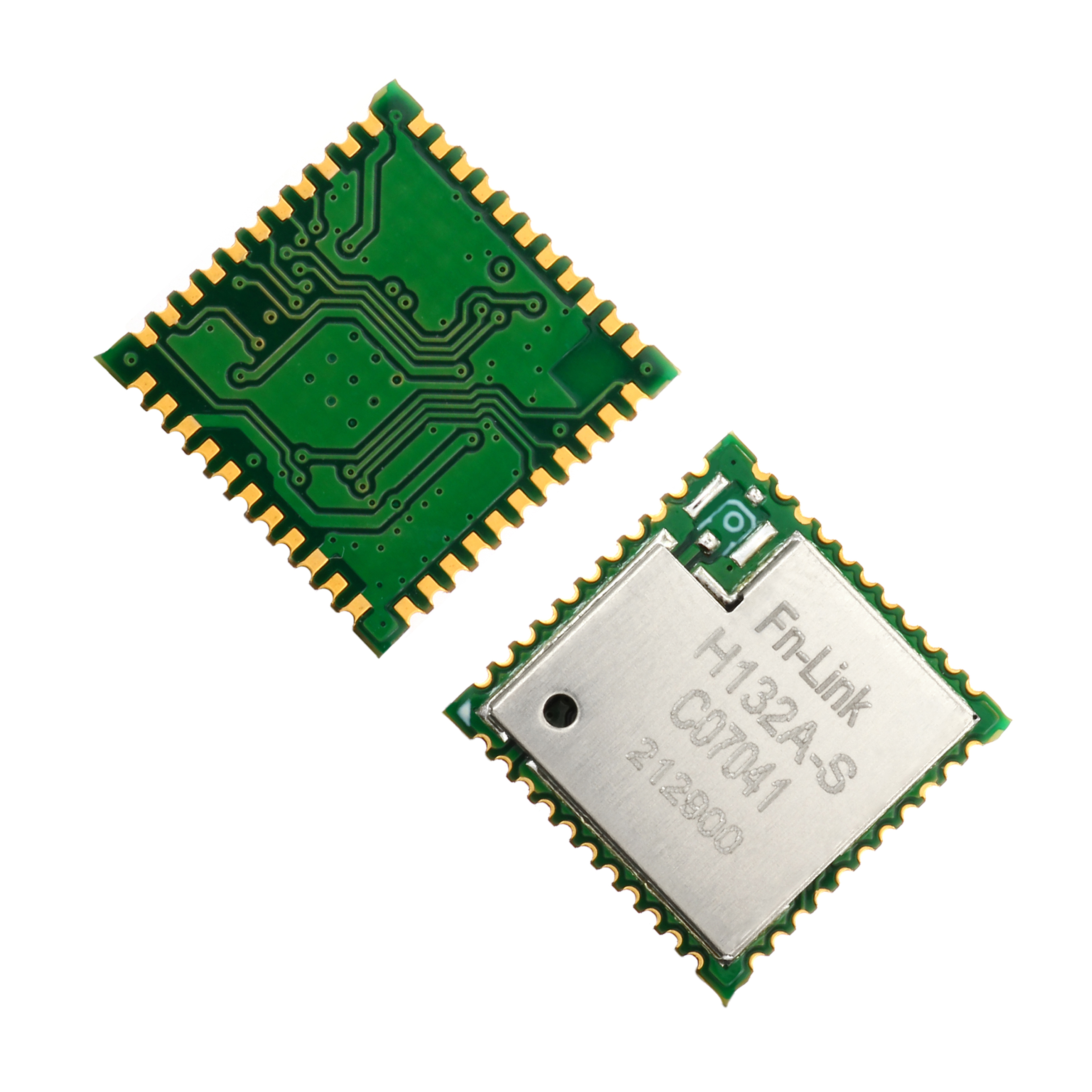

H132A-S Wi-Fi Module

SV32WB01L 1T1R
2.4G Wi-Fi
SDIO Interface
12.0 x 12.0mm
Contact us for HDK, SDK and EVB
Pre-certification available: CE, FCC, SRRC
Availability:
  • 2.4G

  • Without BT

  • Icommsemi

  • 1T1R

  • Select

  • SDIO Interface

Product Name

SV32WB01L Wi-Fi Module H132A-S

SV32WB01L

2.4G Wi-Fi

SDIO Interface

1T1R

12.0 x 12.0mm



Details Information

Introduction

H132A-S is a highly integrated 2.4 GHz Wi-Fi module that support the IEEE 802.11b/g/n standard with 20/40 MHz bandwidth. Module chipset integrates a Andes D10F 32-bit RISC core which runs at up to 480MHz , includes up to 512KB of embedded SRAM, Internal flash up to 2MB, and various peripheral interfaces, including the SPI, UART, I2C, PWM, GPIO, and multi-channel ADC. In addition, it provides SDIO2.0 slave interfaces, with clock frequency up to 50 MHz.


 Features

General Features

Operate at ISM frequency bands (2.4GHz).

Maximum rate of 150 Mbit/s@HT40 MCS7.

Low power dissipation.

PHY supporting IEEE 802.11b/g/n.

MAC supporting IEEE802.11 d/e/h/i/k/r/w.

Module integrated 32K clock.

WEP/WPA/WPA2/WPA3 /WMM for Wi-Fi.

Built-in 512 KB SRAM and 128 KB ROM.

Internal flash 2MB.

SDIO 4Line mode.

WLAN Interface

SDIO interface for Wi-Fi.

Support SDIO/UART/PWM/GPIO/I2C/ADC interface.


 Applications

OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.


 Block Diagram


H132A-S module


 Parameters

Model No.

H132A-S

Main Chipset

SV32WB01L

Interface

Wi-Fi: SDIO

Wi-Fi Standard

IEEE802.11 b/g/n

Data Rate

150Mbps

Certification

RoHS,REACH

RF Antenna

External  Antenna

OS Supported

Android /Linux/ Win CE /iOS /XP/WIN7/WIN10

Operating Frequency

2.4G:2.400~2.4835GHz

Operating Voltage

3.3V

Dimension

L12.0* W12.0 * T2.3mm

RF Chain

1T1R

Operating Temperature

-10°C to 85°C

Storage Temperature

-40°C to 85°C


 Ordering Information

Part No.

Description

FGH132ASXX-01 SV32WB01L, b/g/n Wi-Fi, 1T1R, 12X12mm, SDIO/UART, PCB V1.0,with shielding.4bit mode
FGH132ASXX-00 SV32WB01L, b/g/n Wi-Fi, 1T1R, 12X12mm, SDIO/UART, PCB V1.0,1bit mode,with shielding
