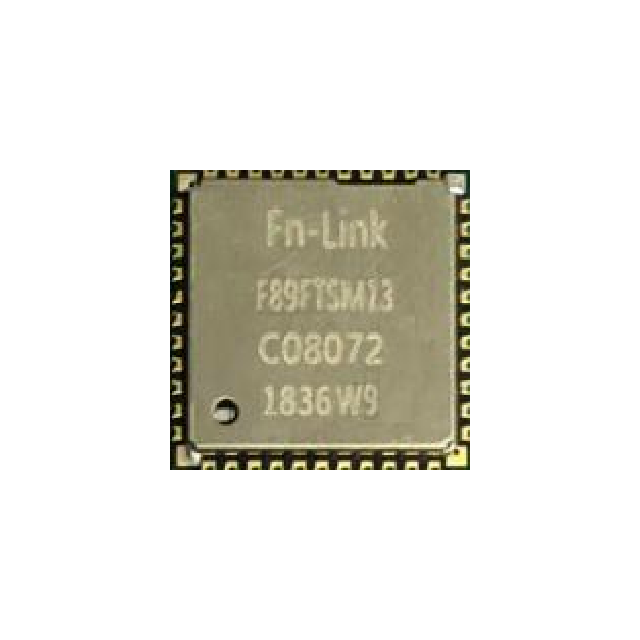

FG89FTSM13-W9 Wi-Fi Module

RTL8189FTV-VQ1
2.4G Wi-Fi 1T1R
SDIO2.0/GPIO Interface
12.0 x 12.0mm
Availability:
  • 2.4G

  • Without BT

  • Realtek

  • 1T1R

  • Select

  • SDIO Interface

Product Name

RTL8189FTV-VQ1 Wi-Fi Module FG89FTSM13-W9

RTL8189FTV-VQ1

2.4G Wi-Fi

SDIO2.0/GPIO Interface

1T1R

12.0 x 12.0mm



Details Information

Introduction

F89FTSM13 is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO network interface device. High-speed wireless connection up to 72.2 Mbps. This WLAN Module design is based on Realtek RTL8189FTV. It is a highly integrated single-chip 1*1 SISO Wireless LAN (WLAN) SDIO network interface controller complying with the 802.11n specification.

It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective.


 Features

General

Enterprise level security which can apply WPA/WPA2 certification for WiFi.

PHY Features

Operate at ISM frequency bands (2.4GHz).

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n.

WiFi 1 T 1 R allow data rates supporting up to 72.2Mbps downstream and upstream PHYrates.

Host Interface

SDIO V1.1/2.0 Interface for WiFi.


 Applications

OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics.


 Block Diagram

F89FTSM13-W9 block diagram


 Parameters


Model No.

FG89FTSM13-W9

Main Chipset

RTL8189FTV-VQ1

Interface

SDIO/GPIO

Wi-Fi Standard

IEEE802.11b/g/n

Data Rate

72.2bps

Certification

RoHS,REACH

RF Antenna

External Antenna

OS Supported

Android /Linux

Operating Frequency

2.4G:2.400~2.497GHz

Operating Voltage

3.3V

Dimension

L12.0 * W12.0 *T1.8mm

RF Chain

1T1R

Operating Temperature

0°C to 70°C

Storage Temperature

-40°C to 80°C



 Ordering Information

Part No.

Description

FG89FTSM13-W9

RTL8189FTV-VQ1,802.11b/g/n,1T1R,12.0*12.0 ,SDIO2.0/GPIO,with shielding.PCB v04
