Product Name

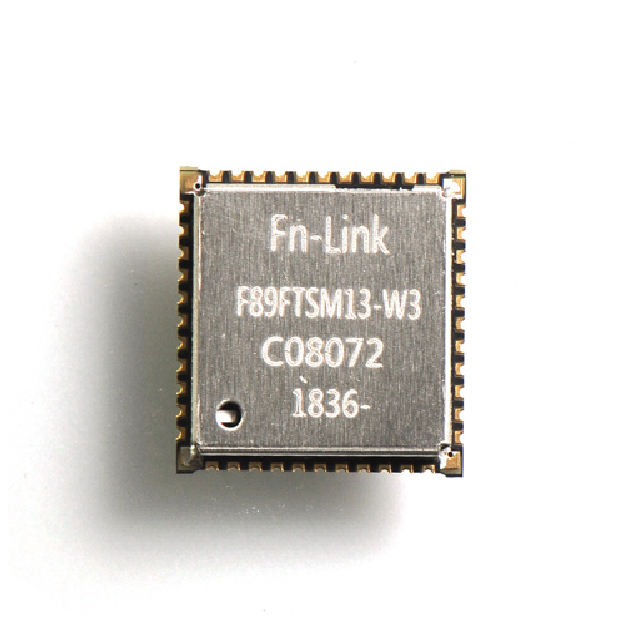

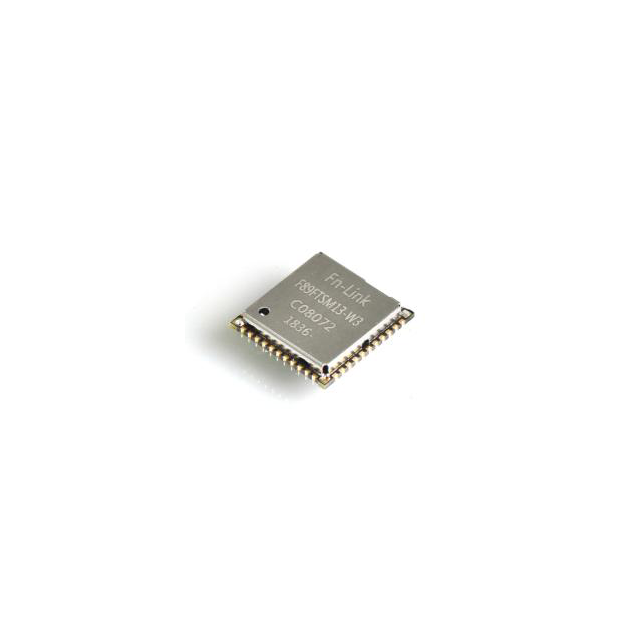

RTL8189FTV-VB Wi-Fi Module FG89FTSM13-W3

RTL8189FTV-VB

2.4G Wi-Fi

SDIO2.0 Interface

1T1R

12.0 x 12.0mm

Details Information

Introduction

F89FTSM13 is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO network interface device. High-speed wireless connection up to 150 Mbps. This WLAN Module design is based on Realtek RTL8189FTV. It is a highly integrated single-chip 1*1 SISO Wireless LAN (WLAN) SDIO network interface controller complying with the 802.11n specification.

It combines a MAC, a 1T1R capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power Consumption and enhance the advantages of robust system and cost-effective.

 Features

Operate at ISM frequency bands (2.4GHz).

SDIO Interface for WiFi.

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n.

Enterprise level security which can apply WPA/WPA2 certification for WiFi.

WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps upstream PHY rates.

 Applications

OTT/IPTV/DVB/STB、Tablet PC、Laptop、Smart TV、IPC/NCR、Industrial Controllers 、DVR、Doorbell、Projector、AR/VR、Printer/POS Terminal、Electronic Scale、Drone、Robot、HDMI Transmitter、Smart Gateway、Education、Toys and other Consumer Electronics.

 Block Diagram

 Parameters

 Ordering Information
