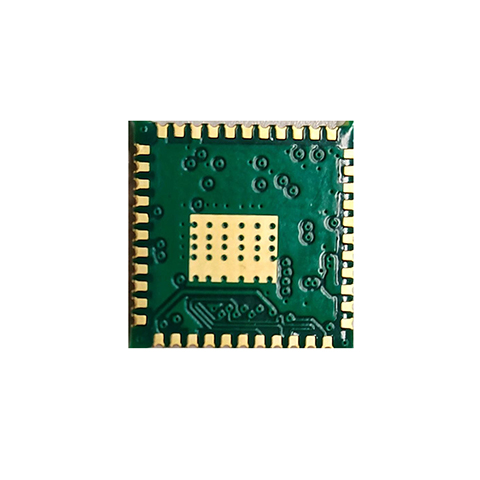

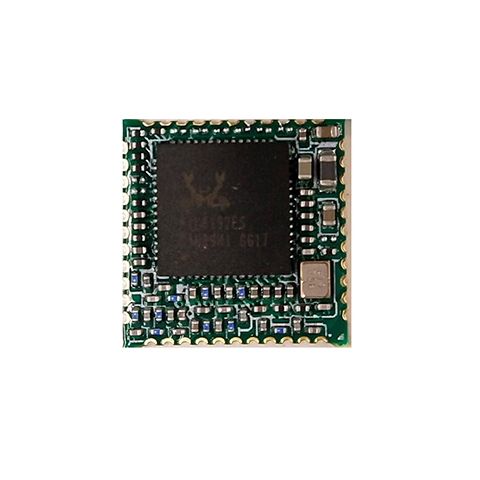

6192A-SE Wi-Fi Single-band Module

6192A-SE
RTL8192ES
IEEE 802.11 b/g/n
2.4G-2.5GHz
2T2R
12X12mm
Availability:
  • 2.4G+5G
  • Without BT
  • Realtek
  • 2T2R
  • Select
  • SDIO Interface

Product Name

6192A-SE RTL8192ES

RTL8192ES
IEEE 802.11 b/g/n
2.4G-2.5GHz
2T2R
12X12mm



Details Information

 Introduction

6192A-SE base on RTL8192ES complied with IEEE 802.11 b/g/n standard from 2.4G-2.5GHz. Support 300Mbps high speed wireless network connection with SDIO interface (1.1/2.0/3.0 compliant)


 Features


12x12mm, 44pin, 3.3V power in.

RTL8192ES.

Complete 802.11n 2x2 MIMO solution for 2.4GHz, maximum data rate up to 300Mbps using 40Mhz bandwidth.

Complies with SDIO 1.1/2.0/3.0 for WLAN with clock rate up to 80Mhz


 Block Diagram

1681803409666


 Parameters

Model No.

6192A-SE

Main Chipset

RTL8192ES

Interface

Wi-Fi: SDIO V1.1/2.0/3.0

Wi-Fi Standard

IEEE802.11b/g/n

Data Rate

300Mbps

Certification

RoHS,REACH

RF Antenna

On-board Antenna

OS Supported

Android/Linux

Operating Frequency

2.400~2.4835GHz

Operating Voltage

3.3V

Dimension

L x W x T: 12 x 12 x 1.6 mm

RF Chain

2T2R

Operating Temperature

0°C to 70°C

Storage Temperature

-40°C to 85°C


 Ordering Information

Part No.

Description

FG6192ASEX-00

RTL8192ES,b/g/n,Wi-Fi,2T2R,12X12mm,SDIO,no shielding,PCB V1.0
