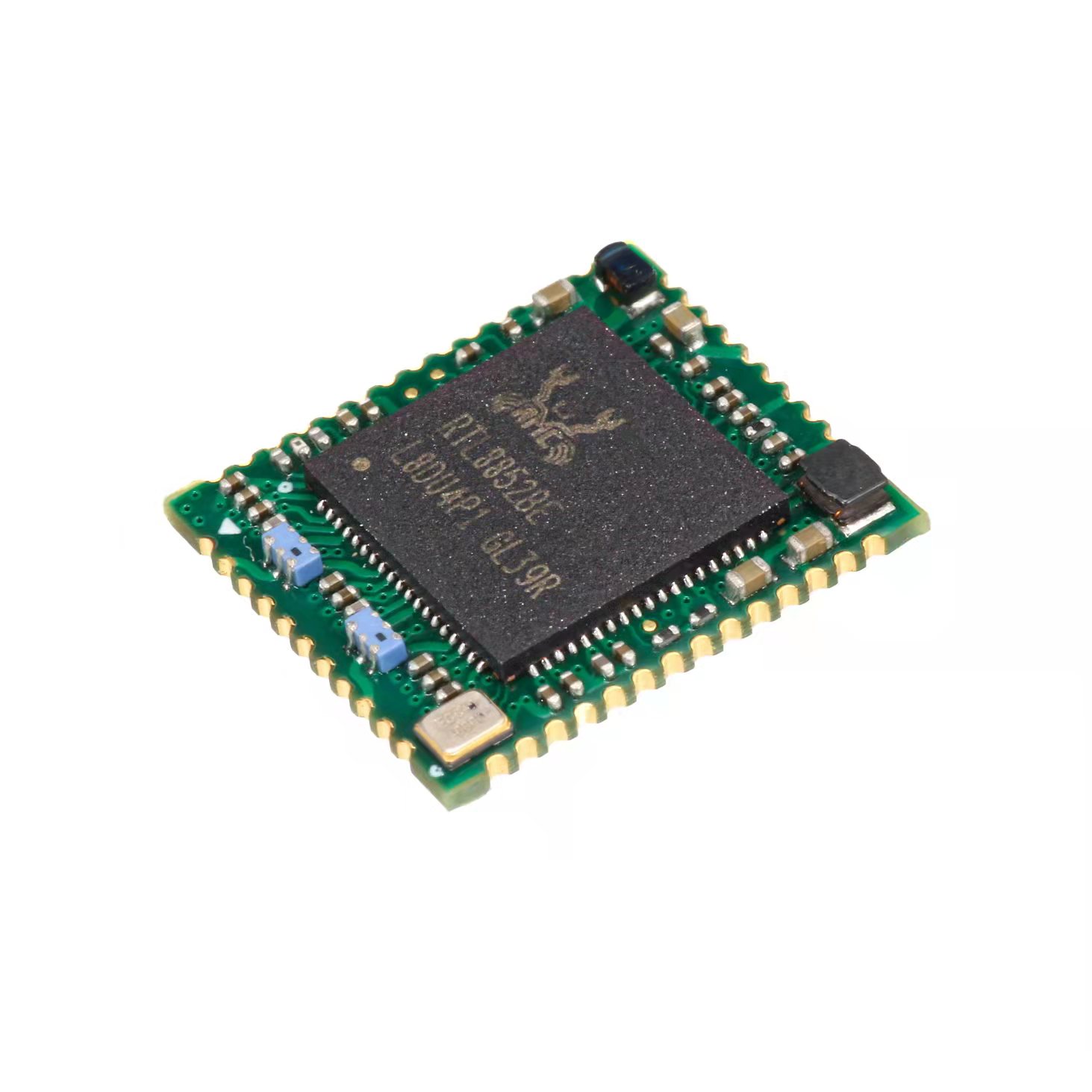

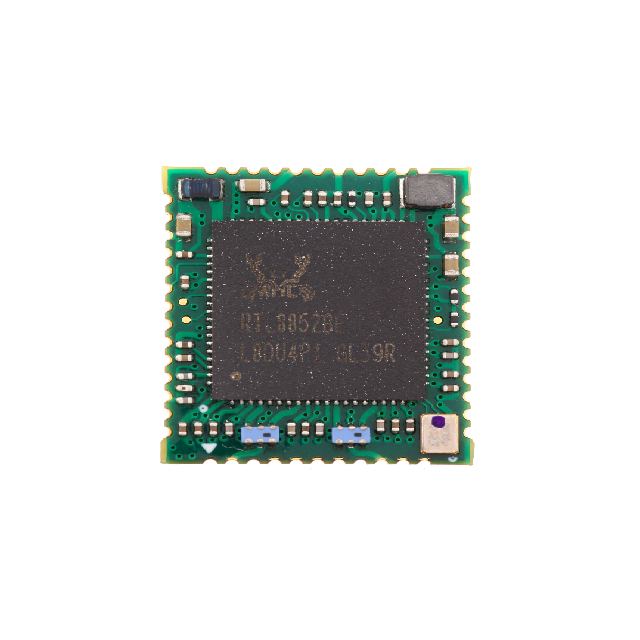

6252B-PRB Wi-Fi6 Module

RTL8852BE-VR-CG 2T2R
802.11a/b/g/n/ac/ax
PCIE/UART/PCM  BT5.2
13.0 X 15.0mm
Availability:
  • 6252B-PRB
  • Fn-Link
  • Wi-Fi 6
  • BT5.0 and above
  • Realtek
  • 2T2R
  • Select
  • Wi-Fi&BT Interface

Product Name

RTL8852BE-VR-CG Wi-Fi6 Module  6252B-PRB

RTL8852BE-VR-CG

802.11a/b/g/n/ac/ax

PCIE/UART/PCM

2T2R

BT5.2/ BLE5.2

13.0 X 15.0mm



Details Information

Introduction

6252B-PRB is a highly interated single module that support 2-stream 802.11ax solution wiht muti-user MIMO with WLAN PCI Express network interface controller and HS-UART mixed interface. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF Support 802.11 a/b/g/n/ac/ax and provide up to 1201Mbps for 11ax MIMO OFDM.


 Features

General

Support IEEE802.11a/b/g/n/ac/ax.

Dual-stream spatial multiplexing up to 1201 Mbps data rate.

Supports 20/40MHz bandwidth at 2.4GHz and 20/40/80MHz 5GHz band channels.

Complies with PCI express base specification revision 1.1.

Support 802.11e,i,h,k. WAPI.

Host Interface

PCIe LTR/L1.Off state supported.

Supports WLAN/Bluetooth coexistence.

Bluetooth Features

Complies wiht HS-UART with configurable baud rate for BT.

Supports Bluetooth 5 system (BT5.2 Logo Compliant).

Compatible with Bluetooth v2.1+EDR.

Dual Mode support: Simultaneous LE and BR/EDR.

BT host digital interface: - HCI UART


 Applications

OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products


 Block Diagram

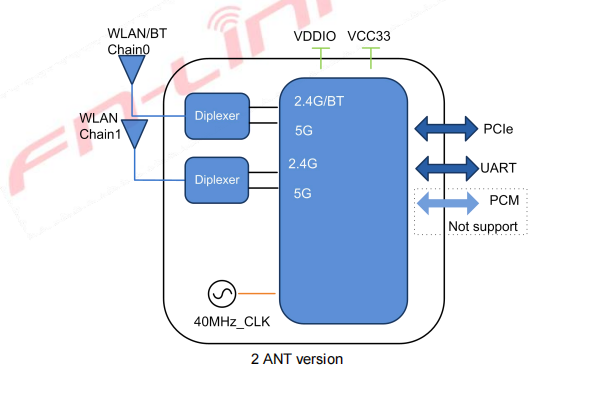

3 ANT Version:

1

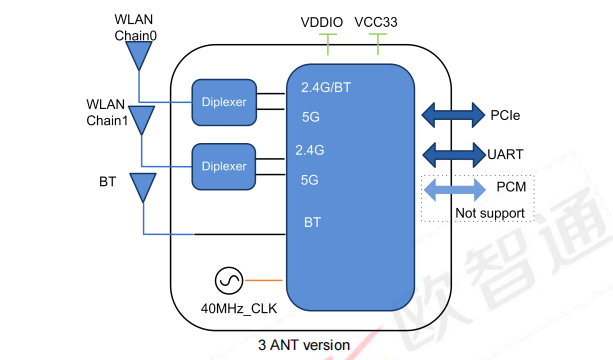

2 ANT Version:

6252B-PRB

 Parameters

Model No.

6252B-PRB

Main Chipset

RTL8852BE-VR-CG

Interface

WiFi: PCIe

BT:Uart/PCM

Wi-Fi Standard

IEEE802.11a/b/g/n/ac/ax+BT5.2

Data Rate

1200Mbps

Certification

RoHS,REACH

RF Antenna

External Antenna

OS Supported

Android /Linux/ Win CE /iOS /XP/WIN7/WIN10

Operating Frequency

2.4G:2.400GHz~2.497GHz(2.4G ISM Band)
5.8G:4.900GHz~5.845GHz(5.0G ISM Band)

Operating Voltage

3.3V

Dimension

L15 * W13 * T1.8mm

RF Chain

2T2R

Operating Temperature

0°C to 70°C

Storage Temperature

-40°C to 85°C


 Ordering Information

Part No.

Description

FG6252BPRB-00 RTL8852BE-VR-CG,a/b/g/n/ac/ax WiFi,2T2R+BT5.2, 13*15mm, PCIE+UART,2 ANT version
FG6252BPRB-01 RTL8852BE-VR-CG,a/b/g/n/ac/ax WiFi,2T2R+BT5.2, 13*15mm, PCIE+UART,3 ANT version
