AIC8800D 1T1R
802.11a/b/g/n/ac/ax
BT5.0/ BLE5.0 SDIO/UART
12.0 X 12.0mm
Contact us for HDK, SDK and EVB
Pre-certification available: SRRC
Availability: | |
---|---|
Wi-Fi 6
BT5.0 and above
AIC
1T1R
Select
SDIO Interface

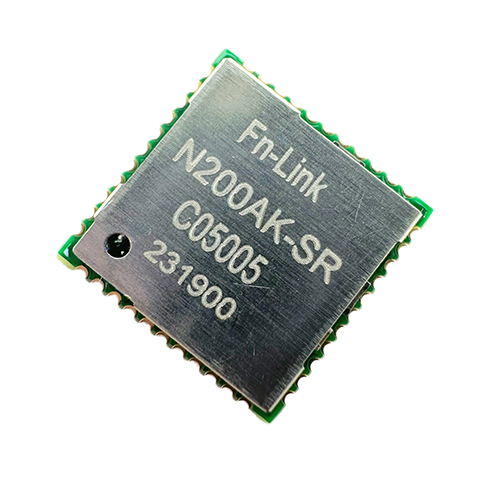

AIC8800D Wi-Fi 6 Module N200AK-SR
AIC8800D 11ax
SDIO/Uart 1T1R
BT5.0/ BLE5.0
12.0 X 12.0mm
Fn-Link Technology would like to announce a low-cost and low-power consumption module which has the Wi-Fi 6 (2.4G 802.11a/b/g/n/ac/ax+5G 802.11a/n/ac/ax) and Bluetooth 5.0 functionalities. Its WLAN function supports the SDIO 2.0 interface, and BT only supports UART interface . The module provides simple legacy and 20MHz/40MHz co-existence mechanism to ensure backward and network compatibility. The wireless module PHY rate can achieve up to 229Mbps@RX and 286.8@TX.
General
Compliant with IEEE 802.11a/b/g/n/ac/ax.
Support 2.4G+5G dual band, 20/40MHz bandwidth.
Wi-Fi Security WEP / WPA / WPA2/WPA3-SAE Personal, MFP.
Support STA, SoftAP, Wi-Fi Direct modes concurrently.
Support STBC, beamforming.
Support Wi-Fi 6 TWT.
PHY Features
Up to 229Mbps@RX and 286.8Mbps@TX PHY rate using 40MHz bandwidth.
Host Interface
Support, SDIO 2.0, UART or USB2.0.
Supports WLAN-Bluetooth coexistence.
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Model No. | N200AK-SR | Main Chipset | AIC8800D |
Interface | Wi-Fi: SDIO 2.0 BT: Uart | Wi-Fi Standard | IEEE802.11a/b/g/n/ac/ax+BLE5.0 |
Data Rate | TX:286.8Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux/ Win CE /iOS /XP/WIN7/WIN10 |
Operating Frequency | 2.4G:2.400GHz~2.497GHz(2.4G ISM Band) 5.8G:4.900GHz~5.845GHz(5.0G ISM Band) | Operating Voltage | 3.3V |
Dimension | L12 * W12 * H 2.35mm(with shielding) L12 * W12 * H 1.7mm(without shielding) | RF Chain | 1T1R |
Operating Temperature | -20°C to 80°C | Storage Temperature | -40°C to 85°C |
Part No. | Description |
FGN200AKSR-00 | AIC8800D, a/b/g/n/ac/ax Wi-Fi 2.4G/5G+BT5.0 1T1R, 12x12mm, SDIO, UART, Single antenna, with shielding version |
FGN200AKSR-01 | AIC8800D,a/b/g/n/ac/ax 2.4G+5G Wi-Fi+BT5.0, 1T1R,12x12mm, single antenna, without shielding |
AIC8800D Wi-Fi 6 Module N200AK-SR
AIC8800D 11ax
SDIO/Uart 1T1R
BT5.0/ BLE5.0
12.0 X 12.0mm
Fn-Link Technology would like to announce a low-cost and low-power consumption module which has the Wi-Fi 6 (2.4G 802.11a/b/g/n/ac/ax+5G 802.11a/n/ac/ax) and Bluetooth 5.0 functionalities. Its WLAN function supports the SDIO 2.0 interface, and BT only supports UART interface . The module provides simple legacy and 20MHz/40MHz co-existence mechanism to ensure backward and network compatibility. The wireless module PHY rate can achieve up to 229Mbps@RX and 286.8@TX.
General
Compliant with IEEE 802.11a/b/g/n/ac/ax.
Support 2.4G+5G dual band, 20/40MHz bandwidth.
Wi-Fi Security WEP / WPA / WPA2/WPA3-SAE Personal, MFP.
Support STA, SoftAP, Wi-Fi Direct modes concurrently.
Support STBC, beamforming.
Support Wi-Fi 6 TWT.
PHY Features
Up to 229Mbps@RX and 286.8Mbps@TX PHY rate using 40MHz bandwidth.
Host Interface
Support, SDIO 2.0, UART or USB2.0.
Supports WLAN-Bluetooth coexistence.
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Model No. | N200AK-SR | Main Chipset | AIC8800D |
Interface | Wi-Fi: SDIO 2.0 BT: Uart | Wi-Fi Standard | IEEE802.11a/b/g/n/ac/ax+BLE5.0 |
Data Rate | TX:286.8Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux/ Win CE /iOS /XP/WIN7/WIN10 |
Operating Frequency | 2.4G:2.400GHz~2.497GHz(2.4G ISM Band) 5.8G:4.900GHz~5.845GHz(5.0G ISM Band) | Operating Voltage | 3.3V |
Dimension | L12 * W12 * H 2.35mm(with shielding) L12 * W12 * H 1.7mm(without shielding) | RF Chain | 1T1R |
Operating Temperature | -20°C to 80°C | Storage Temperature | -40°C to 85°C |
Part No. | Description |
FGN200AKSR-00 | AIC8800D, a/b/g/n/ac/ax Wi-Fi 2.4G/5G+BT5.0 1T1R, 12x12mm, SDIO, UART, Single antenna, with shielding version |
FGN200AKSR-01 | AIC8800D,a/b/g/n/ac/ax 2.4G+5G Wi-Fi+BT5.0, 1T1R,12x12mm, single antenna, without shielding |
