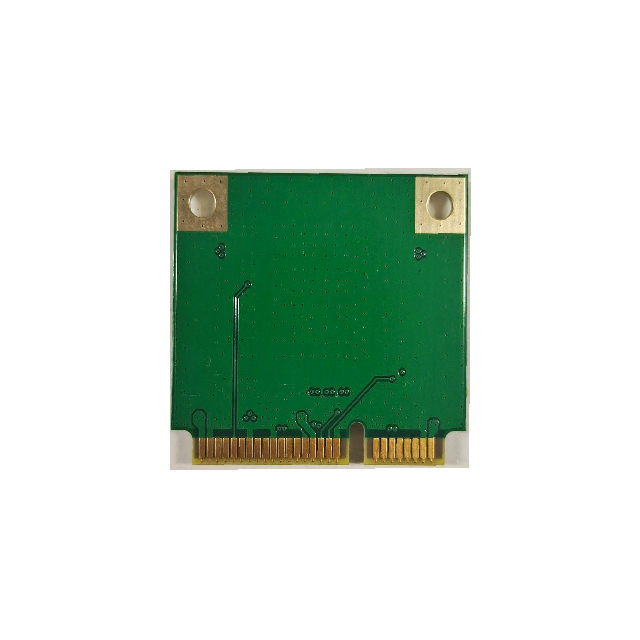

RTL8852BE-CG Wi-Fi6 Module 6252C-PUB-EVB
RTL8852BE-CG
802.11a/b/g/n/ac/ax
Mini-PCIe
2T2R
30.0 X 26.8mm
Details Information
6252C-PUB-EVB is a highly integrated module that support 2-stream 802.11ax solutions with Multi-user MIMO with Wireless LAN MiNi-PCI Express network interface. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip.
The baseband implements MU-MIMO OFDM with 2T2R. Features include two spatial stream transmissions, short Guard Interval (GI), spatial spreading, and support for variant channel bandwidth. Moreover, provides one spatial stream space-time block code (STBC), Transmit Beamforming (TxBF) and Low Density Parity Check (LDPC) to extend the range of transmission. At the receiver, extended range and good minimum sensitivity is achieved by having receiver diversity up to 2 antennas. As the recipient, the module also supports explicit sounding packet feedback that helps senders with beamforming capability.
For legacy compatibility, Direct Sequence Spread Spectrum (DSSS), Complementary Code Keying (CCK) and OFDM baseband processing are included to support all IEEE 802.11b, 802.11g and 802.11a data rates. Differential phase shift keying modulation schemes, DBPSK and DQPSK with data scrambling capability are available, and CCK provides support for legacy data rates, with long or short preamble. The CCK processor can perform dual-receiver by providing diversity gain to extend range and improve the reception. The high speed FFT/IFFT paths, combined with BPSK, QPSK, 16QAM, 64QAM, 256QAM, and up to 1024QAM modulation of the individual subcarriers, and rate compatible coding rate of 1/2, 2/3, 3/4, and 5/6, provide up to 1201Mbps for IEEE 802.11ax MIMO OFDM.
For advanced 11ax spec, can receive with OFDMA (OFDM Access) technology. The RU size can be supported form small unit, e.g., RU26, and RU52, 106, 242, 484, and finally up to RU996. The high-order modulation scheme, such as 1024-QAM, can also be handled very well. Meanwhile, diff number of total subcarrier in the HE-LTF, such as 1x, 2x and 4x is considered. More networking efficiency can be achieved by 1x, and better channel estimation performance provided by 4x.
The module chip MAC supports 802.11e for multimedia applications, 802.11i and WAPI (Wireless Authentication Privacy Infrastructure) for security, and 802.11n/802.11ac/802.11ax for enhanced MAC protocol efficiency. Using packet aggregation techniques such as A-MPDU with BA and A-MSDU, protocol efficiency is significantly improved. Power saving mechanisms such as Legacy Power Save, U-APSD, and MIMO power saving reduce the power wasted during idle time, and compensate for the extra power required to transmit MIMO OFDM. The RTL8852BE provides simple legacy, 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility.
General
CMOS MAC, Baseband PHY and RF in IEEE 802.11a/b/g/n/ac/ax compatible WLAN.
Support 802.11ac 2x2,Wave-2 compliant with RX MU-MIMO.
Support 802.11ax 2x2,with OFDMA and MU-MIMO, by 4 types PPDU format, such as HE-SU-PPDU, HE-ER-SU-PPDU, HE-MU-PPDU, and HE-TB-PPDU.
Complete802.11n MIMO solution for 2.4GHz and 5GHz band, 20MHz/40MHz/80MHz bandwidth ,rate up to 1201Mbps.
IEEE 802.11e/i/h/k,WAPI,WPA3.
Support STBC,LDPC.
Integrated 32K oscillator for power management.
Host Interface
Complies with PCI Express Base Specification Revision 1.1.
Bluetooth Features
None.
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products
Model No. | 6252C-PUB-EVB | Main Chipset | RTL8852BE-CG |
Interface | Wi-Fi: Support MiNi PCIe | Wi-Fi Standard | IEEE802.11a/b/g/n/ac/ax |
Data Rate | 1200Mbps | Certification | RoHS,REACH |
RF Antenna | On -board Antenna | OS Supported | Android /Linux/ Win CE /iOS /XP/WIN7/WIN10 |
Operating Frequency | 2.4G:2.400GHz~2.497GHz(2.4G ISM Band) | Operating Voltage | 3.3V |
Dimension | L30.0 * W26.8 * T2.7mm | RF Chain | 2T2R |
Operating Temperature | 0°C to 70°C | Storage Temperature | -55°C to 85°C |
Part No. | Description |
FG6252CPUB-E0 | RTL8852BE-CG, wifi6, 2T2R, 802.11a/b/g/n/ac/ax, 30*26.8, Mi Ni-PCIE, PCB V1.0,two fourth-generation IPEX Connector |
