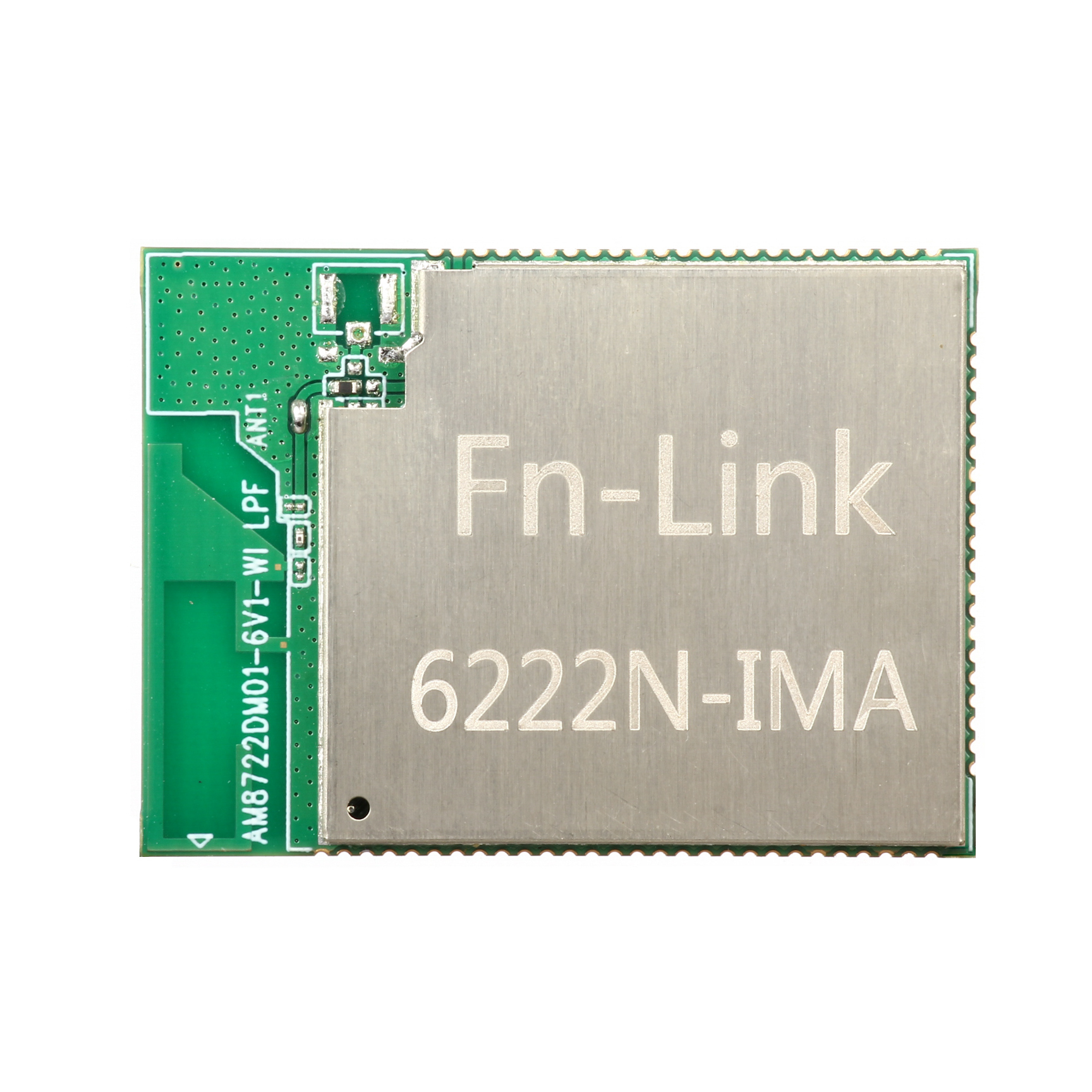

6222N-IMA IoT Module

RTL8722DM BT5.0/ BLE5.0
2.4G Wi-Fi 1T1R
SD,SDIO,USB,UART, SPI,I2C, GPIO
27.0 X 37.0mm
Availability:
  • 2.4G
  • BT5.0 and above
  • Realtek
  • 1T1R
  • Select
  • Wi-Fi Interface

Product Name

RTL8722DM  IoT Module  6222N-IMA

RTL8722DM

2.4G Wi-Fi

SD,SDIO,USB,UART, SPI,I2C, GPIO

1T1R

BT5.0/ BLE5.0

27.0 X 37.0mm




Details information


Introduction

6222N-IMA is a highly integrated IoT module with low power 802.11a/b/g/n Wireless LAN (WLAN) and Bluetooth Low Energy communication controller. It combines a high-performance KM4 MCU, a low power KM0 MCU, WLAN (802.11 a/b/g/n) MAC, a 1T1R capable WLAN baseband, RF, Bluetooth.

High speed connectivity interfaces, SDIO and USB are provided. Also audio codec, key-scan and touch keys integrated. Flexible design configures GPIO to different functions.

6222N-IMA integrates internal memories for complete Wi-Fi protocol functions.


 Features

27*37mm with PCB antenna version.

System and memory

Dual processor core.

KM4: Armv8-M with cortex-m33.

KM0: Armv8-M with cortex-m23.

512kB SRAM@200MHz.

4MB external flash.

64 GPIO pins.

IPC: inter-processor communication.

Wireless

802.11a/b/g/n 1x1 2.4G&5GHz.

20MHz/40MHz up to MCS7.

Very low power suspends mode(DLPS).

BLE5.0.

Security

Hardware engine: AES/DES/SHA hardware engine.

Secure boot supported.

Debug port access protection and prohibition modes.

Secure efuse.

Flash decryption on the fly.

Communication internaces

SD/SDIO2.0 SDR25

USB2.0

SPI

UART

IR

SGPIO

I2C

USI

Audio

Sampling frequency:8/16/32/44.1/48/88.2/9KHz.

Integrates earphone driver 40mW on 16Ω load/ 20mW on 32Ω load.

Gain step: 0.375dB/step ,gain range: -64.5dB~0dB.

Audio output mode Line-out cap-less mode /differential mode/ single-ended mode.

I2S.

Timer

PWM

RTC

Human machine interaction

Key-matrix

Cap-touch

LCD

Analog

ADC



 Block Diagram

1


 Parameters


Model No.

6222N-IMA

Main Chipset

RTL8722DM

Interface

SD,SDIO,USB,UART, SPI,I2C, GPIO

Bluetooth Standard

BLE5.0

Data Rate

150Mbps

Certification

RoHS,REACH

RF Antenna

External Antenna

OS Supported

Android/Linux

Operating Frequency

2.400~2.4835GHz

Operating Voltage

3.3V

Dimension

L27.0 *W37.0 *T3.15mm

RF Chain

1T1R

Operating Temperature

-20°C to 85°C

Storage Temperature

-40°C to 125°C



 Ordering Information

Part No.

Description

FG6222NIMA-00

RTL8722DM,b/g/n/a,Wi-Fi+BLE5.0,1T1R,27X37mm,Uart+USB,w ith shielding,PCB antenna ,PCB 6V1
