BT3.0

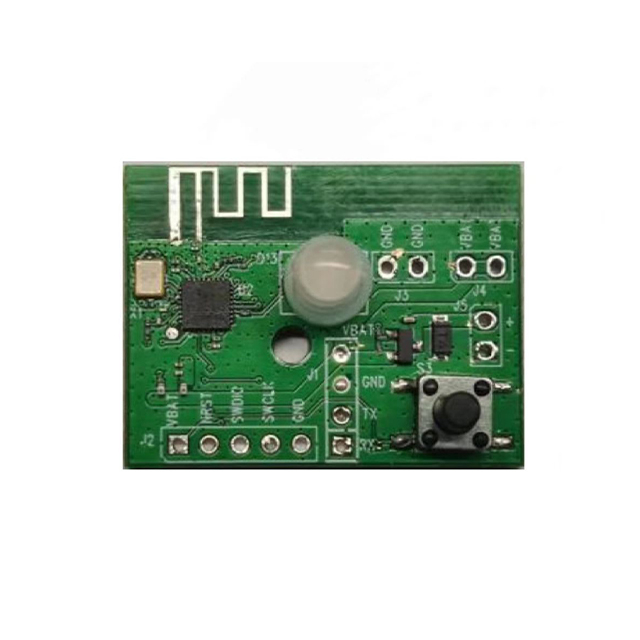

LE5010AI Bluetooth Module R110N-R
LE5010AI
FN-link releases a low-cost, low-power Bluetooth 5.0 module with support for Mesh functionality. It is highly integrated with a 32-bit MCU with 64kByte SRAM and 512kByte flash, and a Bluetooth 5.0 LE transceiver. The Bluetooth wireless module is compliant with the Bluetooth 5.0 LE standard. The module's moderate size makes it suitable for applications such as smart LEDs and can efficiently It can solve the emergency communication problems in complex environments such as high-rise, underground, tunnel, and large complexes.
Features
Support for Bluetooth 5.0 LE standard.
Supports 2Mbps LE.
LE broadcast expansion.
Support for OTA control upgrades.
Support for UART communication.

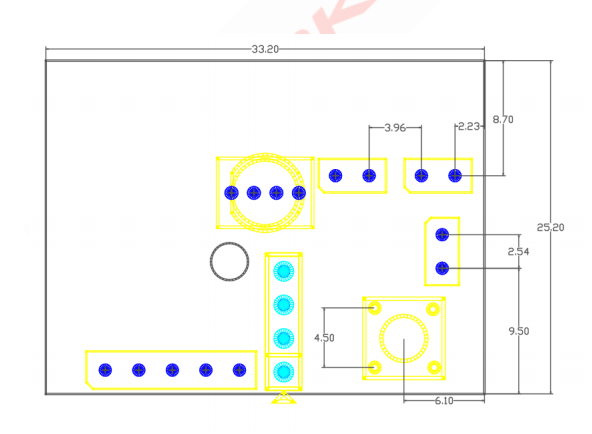

Package size: 32.2X25.2X16.25mm
Parameters
Model No. | R110N-R | Main Chipset | LE5010AI |
Interface | BT: Uart | Wi-Fi Standard | / |
Data Rate | 433Mbps | Certification | RoHS |
RF Antenna | On board antenna | OS Supported | / |
Dimension | L 32.2X W25.2X T16.25 mm | RF Chain | / |
Operating Temperature | -20°C to 85°C | Storage Temperature | -40°C to 125°C |
Part No. | Description |
FGR110NRXX-00 | LE5010AI,BLE5.0/BLE5.1,25*33mm,SPI/UART/I2C,On board antenna |
