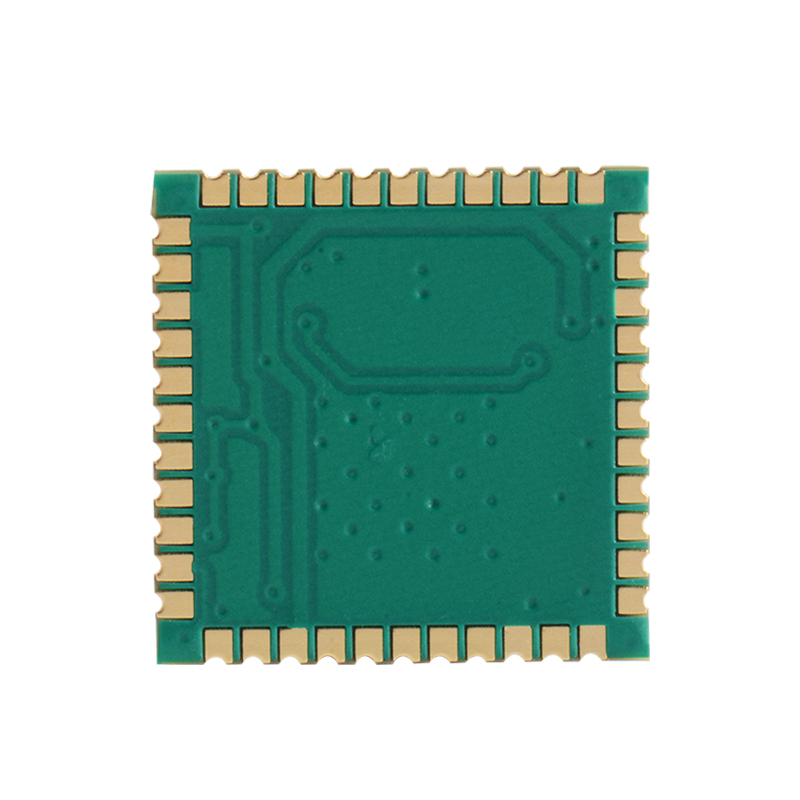

H256A-S Wi-Fi Dual-band Module

H256A-S Wi-Fi  SV6256P
SV6256P
802.11a/b/g/n
1T1R
2.4G
L x W x T: 12 x 12 x 1.6 (typical) mm
Contact us for HDK, SDK and EVB
Pre-certification available: SRRC
Availability:
  • 2.4G

  • BT5.0 and above

  • 1T1R

  • Select

  • SDIO Interface

Product Name

H256A-S Wi-Fi  SV6256P

SV6256P

802.11a/b/g/n

WiFi 2.4G

1T1R
L x W x T: 12 x 12 x 1.6 (typical) mm



Details Information

 Introduction

H256A-S is a highly integrated and excellent performance Wireless LAN (WLAN) SDIO network interface device. Based on iCOMM chipset SV6256P. support 802.11a/b/g/n standard.


 Features


Operate at ISM frequency bands (2.4GHz+5GHz)

CMOS MAC, Baseband PHY, and RF in a single chip for 802.11a/b/g/n compatible WLAN

Wi-Fi 1 T 1 R allow data rates supporting up to 150 Mbps PHY rates


 Block Diagram

1681798244484


 Parameters

Model No.

H256A-S

Main Chipset

SV6256P

Interface

Wi-Fi: SDIO

Wi-Fi Standard

IEEE802.11b/g/n

Data Rate

72.2Mbps

Certification

RoHS,REACH

RF Antenna

On-board Antenna

OS Supported

Android/Linux

Operating Frequency

2.400~2.4835GHz

Operating Voltage

3.3V

Dimension

L x W x T: 12 x 12 x 1.6 mm

RF Chain

1T1R

Operating Temperature

-10°C to 70°C

Storage Temperature

-40°C to 85°C


 Ordering Information

Part No.

Description

FGH256ASXX-00

SV6256P,a/b/g/n,WiFi 2.4G,1T1R,SDIO,单天线,无屏蔽盖
