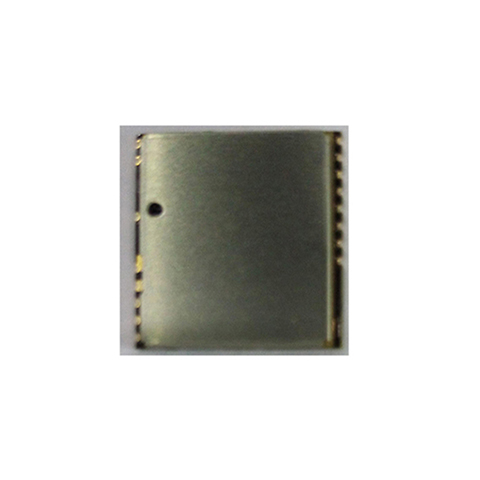

F21AUUM13-W1 Combo Module

F21AUUM13-W1  RTL8821AU
802.11a/b/g/n/ac
USB2.0  1T1R
L19.0mm*W17.1mm*T2.0mm
Contact us for HDK, SDK and EVB
Availability:
  • BT4.2 and below

  • Realtek

  • 1T1R

  • Select

  • USB Interface

Product Name

F21AUUM13-W1  RTL8821AU

RTL8821AU

802.11a/b/g/n/ac

USB2.0

1T1R

L19.0mm*W17.1mm*T2.0mm



Details Information

 Introduction

F21AUUM13-W1 is a highly integrated module 802.11a/b/g/n/ac 1T1R USB2.0 WLAN controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, BT Protocol Stack(LM,LL, and LE), BT baseband, modem, and WLAN/BT RF in the module. The module provides a complete solution for a high throughput performance integrated wireless LAN and Bluetooth device. The F21AUUM13 WLAN baseband implements OFDM with 1 transmit and 1 receive path and is compatible with the 802.11ac specification. Features include one spatial stream transmission, short guard interval(GI) of 400ns, spatial spreading, and transmission over 20MHz, 40MHz and 80MHz channel bandwidth. The F21AUUM13 Bluetooth controller complies with Bluetooth core specification v4.0, and supports dual mode(BR/EDR+AMP+LOW Energy Controllers). It is compatible with previous versions, including v2.1+EDR and v3.0+HS. For BR/EDR, it supports scatternet topology and allows four active links in slave mode, or links in master mode. For Low Energy, it supports multiple states and allows to link in BR/EDR and LE modes simultaneously.


 Features


General

Support 802.11b/g/n/ac Draft 3.0 1T1R WLAN and Bluetooth

Complies with USB2.0 for WLAN and BT controller

Operation at 2.4~2.5GHz and 5.15~5.825GHz frequency band to meet worldwide regulations

Provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility.

Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication

Supports IEEE 802.11i(WPA and WPA2). Open, shared key, and pair-wise key authentication services


Bluetooth Features

Bluetooth Low Energy Support

Supports AFH to dynamically detect channel quality to improve transmission quality ● Fast AGC control to improve receiving dynamic range


 Block Diagram

1681788308536


 Parameters

Model No.

FG21AUUM13-W1

Main Chipset

RTL8821AU

Interface

USB 2.0

Wi-Fi Standard

IEEE802.11a/b/g/n/ac

Data Rate

WiFi:

802.11b: 1,2,5.5,,11Mbps 802.11a:6,9,12,18,24,36,48,54Mbps

802.11g: 6,9,12,18,24,36,48,54Mbps

802.11n: MCS0~MCS7,up to 150Mbps

802.11ac: up to 433.3Mbps

BT:

1 Mbps for Basic Rate

2,3 Mbps for Enhanced Data Rate

Certification

RoHS,REACH

RF Antenna

External Antenna

OS Supported

Android/Linux

Operating Frequency

2.4G: 2.4000GHz~2.4835GHz

5G: 5.150GHz~5.825GHz

Operating Voltage

3.3V

Dimension

L19.0mm*W17.1mm*T2.0mm

RF Chain

1T1R

Operating Temperature

-20°C to 85°C

Storage Temperature

-40°C to 125°C


 Ordering Information

Part No.

Description

FG21AUUM13-W1

Module without shield cover,IEEE 802.11 a/b/g/n/ac WLAN, BT 2.1/3.0/4., USB Module,L19.0mm*W17.1mm*T2.0mm
