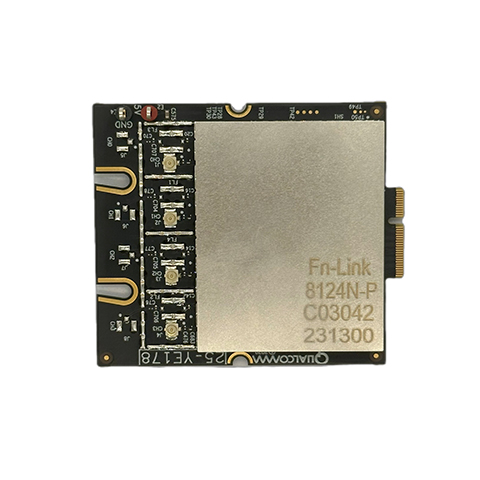

8124N-P Wi-Fi Module QCN9024
QCN9024
5G Wi-Fi
PCIe E-key
Details Information
8124N-P is an 802.11ax Wi-Fi 5G PCIe radio, with 802.11ax technology is a highly integrated wireless local area network (WLAN) system-onchip(SoC) for 5 GHz IEEE802.11ax/ac/n/a applications. The wireless module complies with IEEE 802.11 a/n/ac/ax 4x4 MIMO standard and it can achieve up to a speed of 4804Mbps (4x4 11ax 160Mhz ). The integrated module provides PCIe interface for Wi-Fi.
General
4x4/160 MHz 11ax PCIe Radio.
Supports 20/40/80/160 MHz in 5 GHz. Compliant with IEEE 802.11a/n/ac/ax.
Data rates of up to 4804 Mbps for 160 MHz ax Mode
Supports up to 256 simultaneously connected clients
TxBF, MU-MIMO, MU-OFDMA/TxBF, ML, STBC
IEEE 802.11d, h, i, j, k, r, u, v, and w
Four interfaces to external PAs operating in the 5 GHz
WPA/WPA2-Personal/WPA2-Enterprise and WPA3 Personal
2Mbit serial I²C bus EEPROM
Host Interface
Support PCI Express 2-lane-g2 or 1-lane-g3
OTT/IPTV/DVB/Set-top Box, Tablet PC, Advertising Machine,Intelligent TV, IPC/NVR, Industrial Control Equipment,Car Recorder,Intelligent Doorbell, Intelligent Projector, Virtual Reality, VR/AR, Wireless Storage, Printer, POS Machine, Electronic Scale,Vehicle Front/Rear End, Drone, Robot, HDMI Transmitter,Smart Gateway, Education,Toys, Lighting Lamps, Intelligent Street Light, Intelligent Home Appliances/Home Appliances Instrumentation (Water, Electricity, Gas), Smart City and other Consumer Electronic Products.
Model No. | 8124N-P | Main Chipset | QCN9024 |
Wi-Fi Interface | PCIe E-key | Wi-Fi Standard | IEEE802.11a/n/ac/ax |
Data Rate | 4804 Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux/Windows |
Operating Frequency | 5.15 GHz ~ 5.850 GHz (5 GHz Band) | Operating Voltage | 3.3V |
Dimension | L x W x H: 62.4 x 57 mm | RF Chain | 4T4R |
Operating Temperature | 0°C to 70°C -20°C to 70°C(industrial chip) | Storage Temperature | -40°C to 90°C |
Part No. | Description |
PA8124NPXX-00 | QCN9024,5GHz a/n/ac/ax Wi-Fi,4T4R,62.4x57mm,PCIE M.2 E-key,IPEX |
